Individual hose record
4204183 Hose Repair Specifications
Excavator · Hitachi · EX270LC · Control Valve
Finished length890 mm
Locate this hose

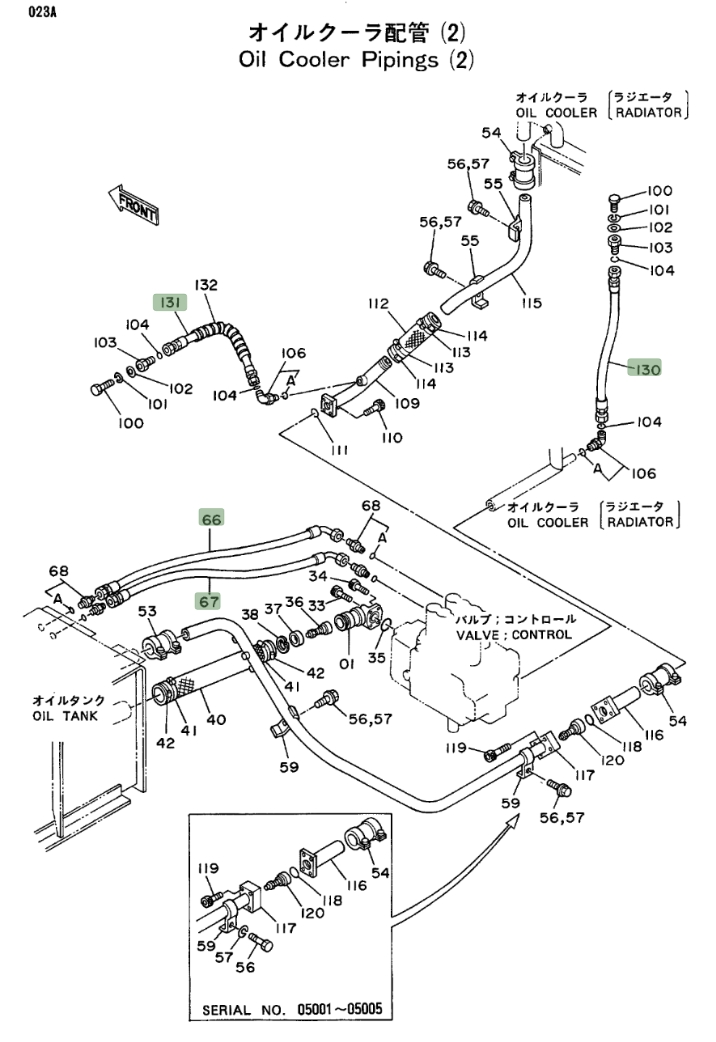

Installation diagram — Pipe No. 66
Locate Pipe No. 66 in the diagram, then confirm part number 4204183 before removing the hose.
Repair specifications
- Part number
- 4204183
- Diagram pipe number
- 66
- Installation route
- 分配阀上~液压油箱
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 890 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
