Individual hose record

4473367 Hose Repair Specifications

Excavator · Hitachi · ZX180W · Attachments

Finished length580 mm

Locate this hose

Installation diagram — Pipe No. 62A

Locate Pipe No. 62A in the diagram, then confirm part number 4473367 before removing the hose.

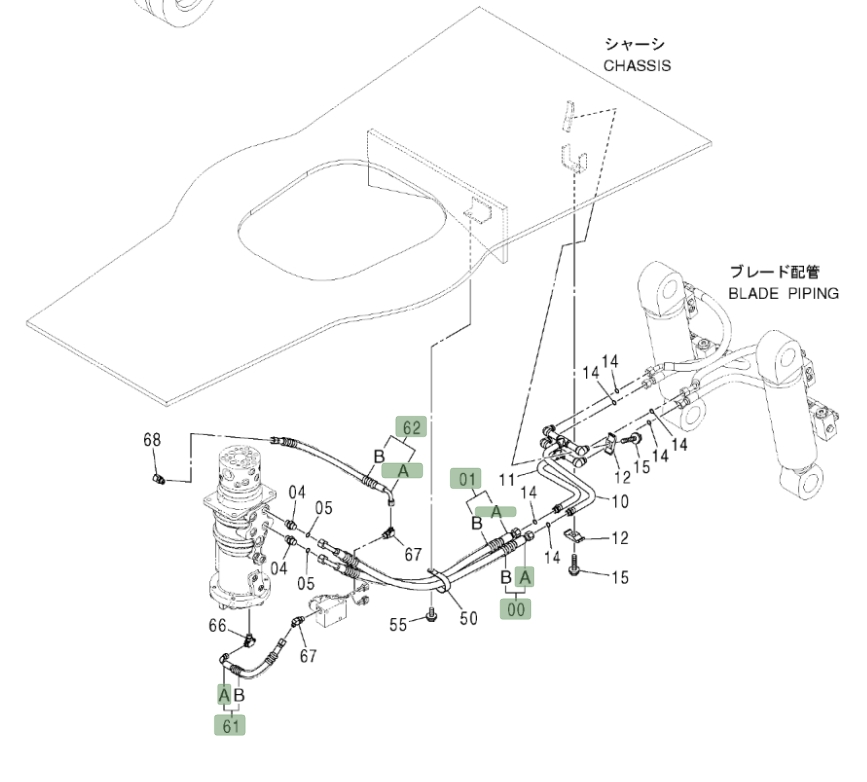

Hitachi ZX180W installation diagram showing hydraulic hose 4473367 at Pipe No. 62A — **Hitachi ZX180W**Part 4473367 · Pipe No. 62AOpen full-size diagram

Repair specifications

Part number: 4473367
Diagram pipe number: 62A
Installation route: 回转接头~电磁阀(推土铲)
Hose specification: DN10;1SN-6;18MPa
Finished length: 580 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 58A

4474667

Installation route: 右支腿架油缸锁止阀

Length: 900 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 48A

4489054

Installation route: 右支腿架油缸锁止阀

Length: 350 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 5A

4285799

Installation route: 推土铲油缸~铁管(推土铲)

Length: 750 mm
Specification: DN12;4SP-08;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 70A

4285802

Installation route: 右支腿架油缸锁止阀

Length: 900 mm
Specification: DN12;4SP-8;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

4445714

Installation route: 过渡阀块前(支腿架)~过渡阀块后(支腿架)

Length: 370 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 58

9228663

Installation route: 右支腿架油缸锁止阀

Length: 900 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 6A

4285797

Installation route: 推土铲油缸~铁管(推土铲)

Length: 650 mm
Specification: DN12;4SP-8;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 70

9224574

Installation route: 右支腿架油缸锁止阀

Length: 900 mm
Specification: DN12;4SP-8;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
