Individual hose record
4285799 Hose Repair Specifications
Excavator · Hitachi · ZX180W · Attachments
Finished length750 mm
Locate this hose

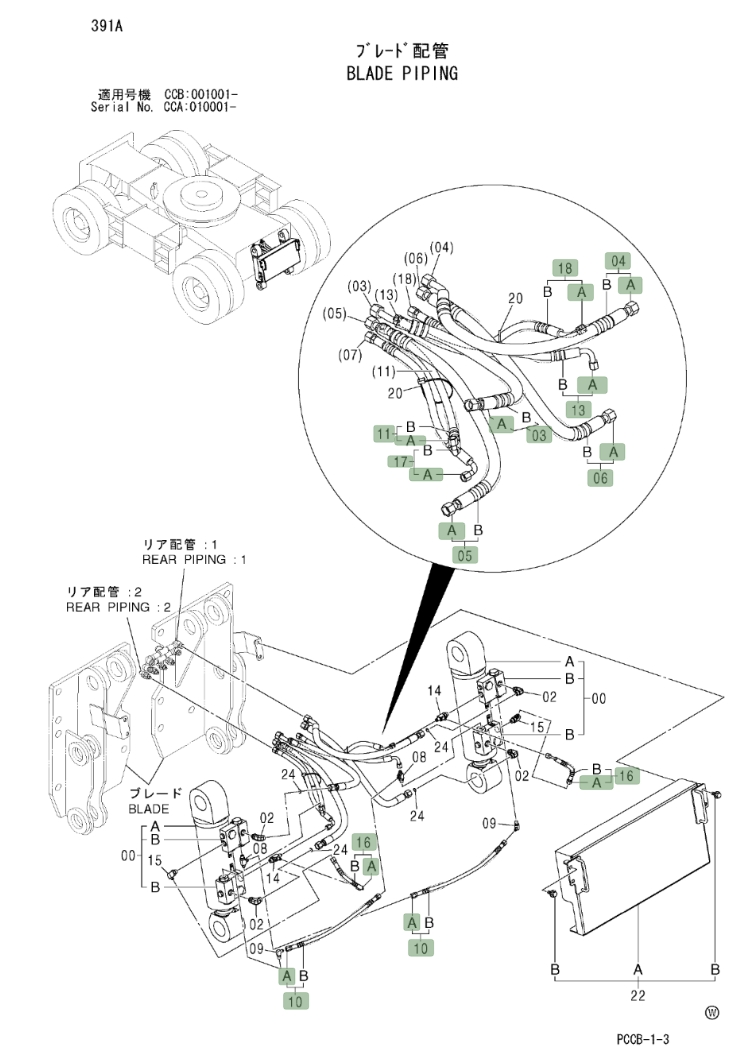

Installation diagram — Pipe No. 5A
Locate Pipe No. 5A in the diagram, then confirm part number 4285799 before removing the hose.
Repair specifications
- Part number
- 4285799
- Diagram pipe number
- 5A
- Installation route
- 推土铲油缸~铁管(推土铲)
- Hose specification
- DN12;4SP-08;34.5Mpa
- Finished length
- 750 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
