Individual hose record

730502002465 Hose Repair Specifications

Excavator · Sunward · SWE215E · Hydraulic Pump

Finished length3,050 mm

Locate this hose

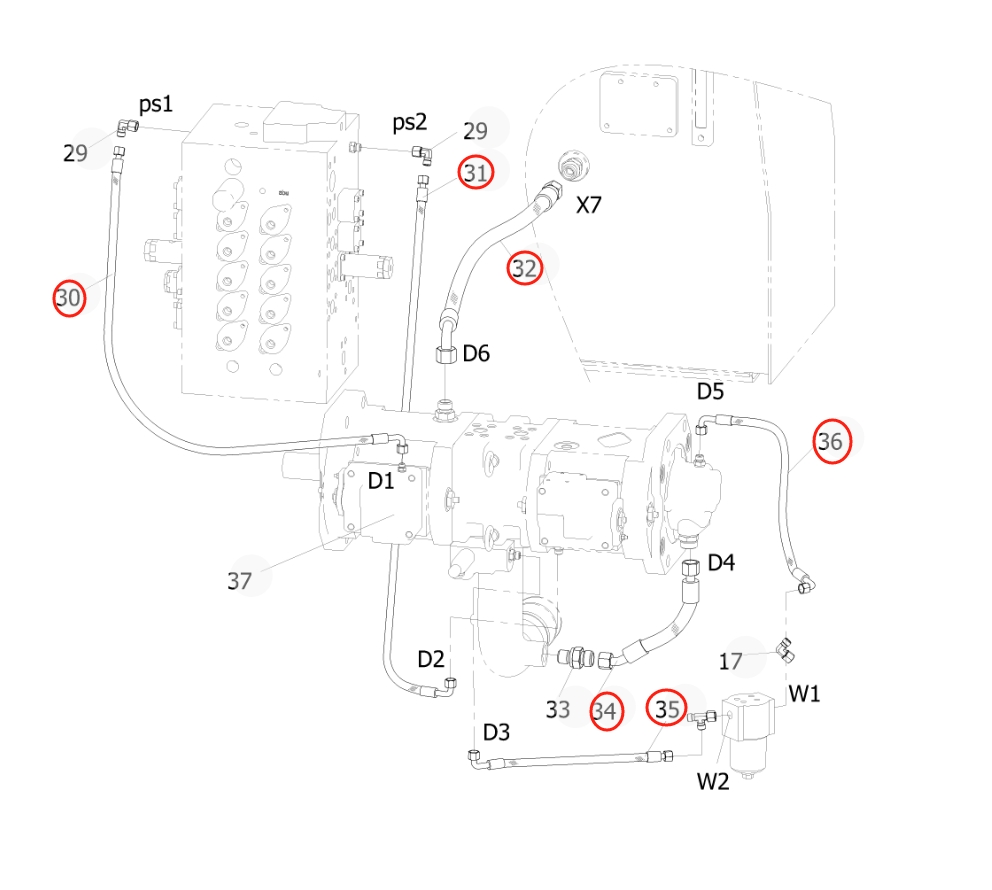

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number 730502002465 before removing the hose.

Sunward SWE215E installation diagram showing hydraulic hose 730502002465 at Pipe No. 31 — Sunward SWE215EPart 730502002465 · Pipe No. 31Open full-size diagram

Repair specifications

Part number: 730502002465
Diagram pipe number: 31
Installation route: 液压泵下D2~分配阀PS2
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,050 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
