Individual hose record

73050200B890 Hose Repair Specifications

Excavator · Sunward · SWE135E-3H · Hydraulic Pump

Finished length770 mm

Locate this hose

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 73050200B890 before removing the hose.

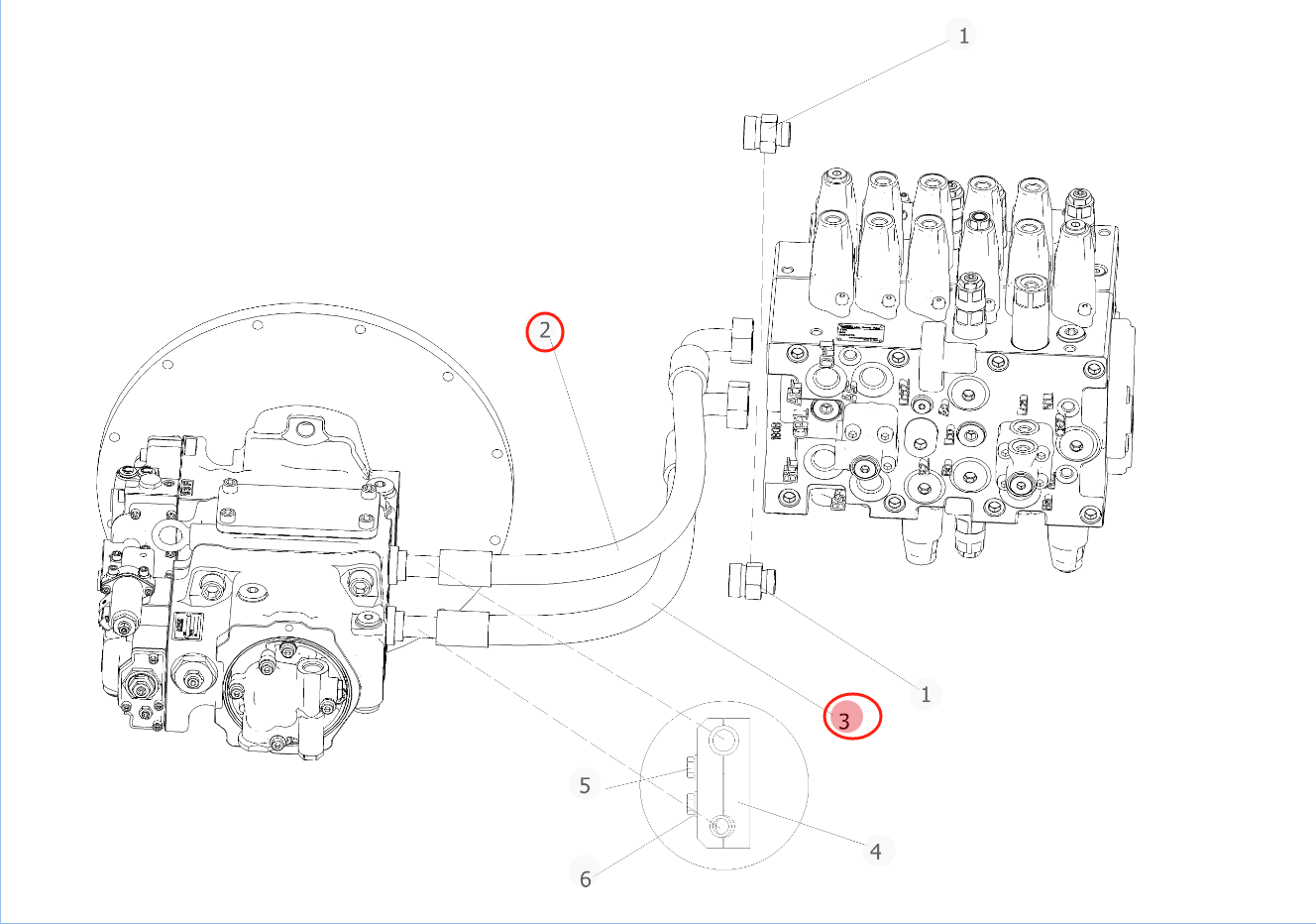

Sunward SWE135E-3H installation diagram showing hydraulic hose 73050200B890 at Pipe No. 2 — Sunward SWE135E-3HPart 73050200B890 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 73050200B890
Diagram pipe number: 2
Installation route: 液压泵~分配阀
Hose specification: DN20;6SH-12;35MPa
Finished length: 770 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 61

730502001308

Installation route: 液压泵~分配阀N1

Length: 1,900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 3

73050200B891

Installation route: 液压泵~分配阀

Length: 710 mm
Specification: DN20;6SH-12;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 49

730502006196

Installation route: 液压泵T4~液压油箱T10

Length: 570 mm
Specification: DN16;1SN-10;13.8MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 64

730502002947

Installation route: 液压泵~液压油滤清器(OUT)

Length: 830 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 61

730502001308

Installation route: 液压泵~分配阀N2

Length: 1,900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
