Individual hose record

730502001308 Hose Repair Specifications

Excavator · Sunward · SWE135E-3H · Hydraulic Pump

Finished length1,900 mm

Locate this hose

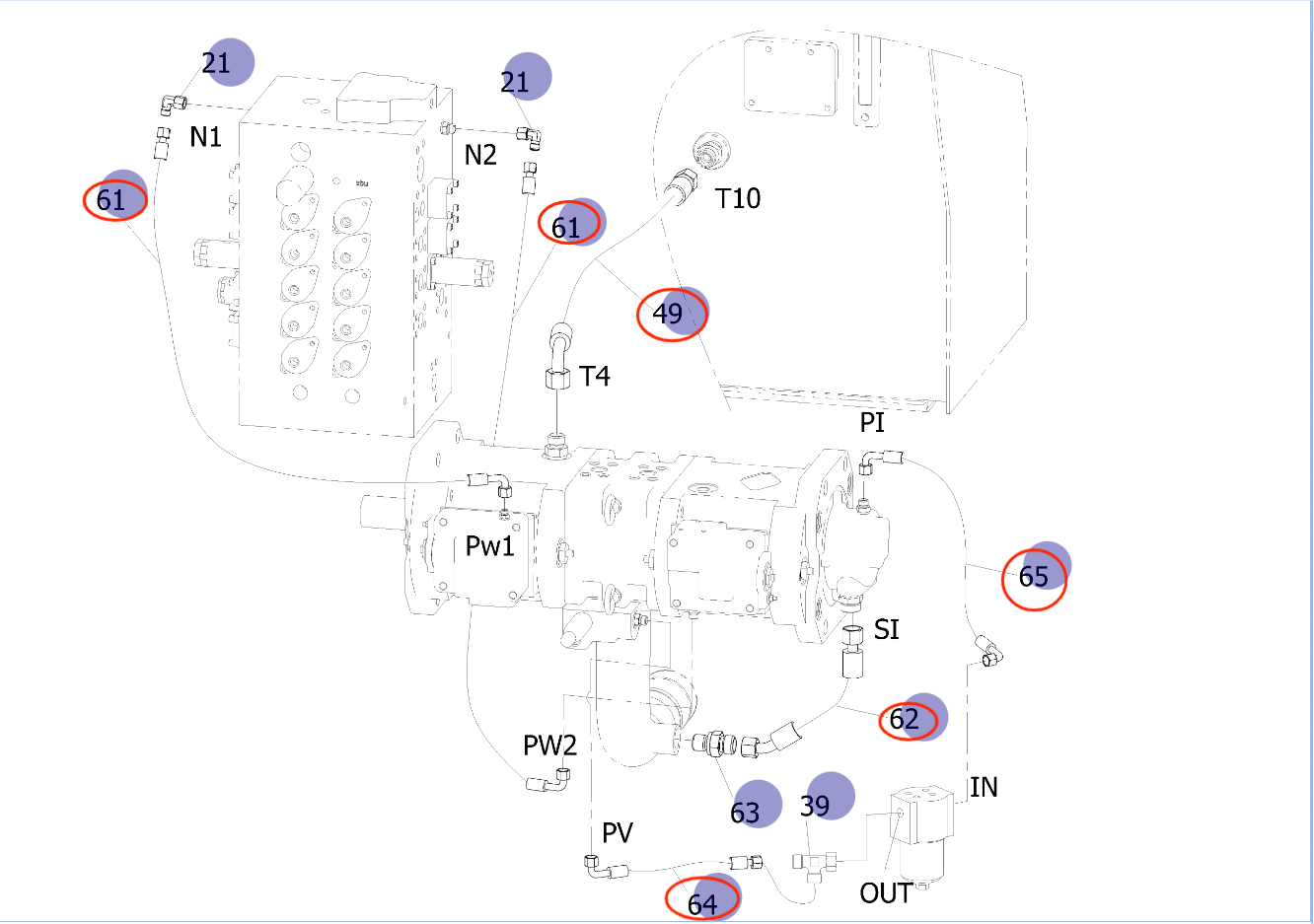

Installation diagram — Pipe No. 61

Locate Pipe No. 61 in the diagram, then confirm part number 730502001308 before removing the hose.

Sunward SWE135E-3H installation diagram showing hydraulic hose 730502001308 at Pipe No. 61 — Sunward SWE135E-3HPart 730502001308 · Pipe No. 61Open full-size diagram

Repair specifications

Part number: 730502001308
Diagram pipe number: 61
Installation route: 液压泵~分配阀N1
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,900 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

73050200B890

Installation route: 液压泵~分配阀

Length: 770 mm
Specification: DN20;6SH-12;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 3

73050200B891

Installation route: 液压泵~分配阀

Length: 710 mm
Specification: DN20;6SH-12;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 49

730502006196

Installation route: 液压泵T4~液压油箱T10

Length: 570 mm
Specification: DN16;1SN-10;13.8MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 64

730502002947

Installation route: 液压泵~液压油滤清器(OUT)

Length: 830 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 61

730502001308

Installation route: 液压泵~分配阀N2

Length: 1,900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
