Individual hose record
4353626 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3 · Grease Lines
Finished length10,000 mm
Locate this hose

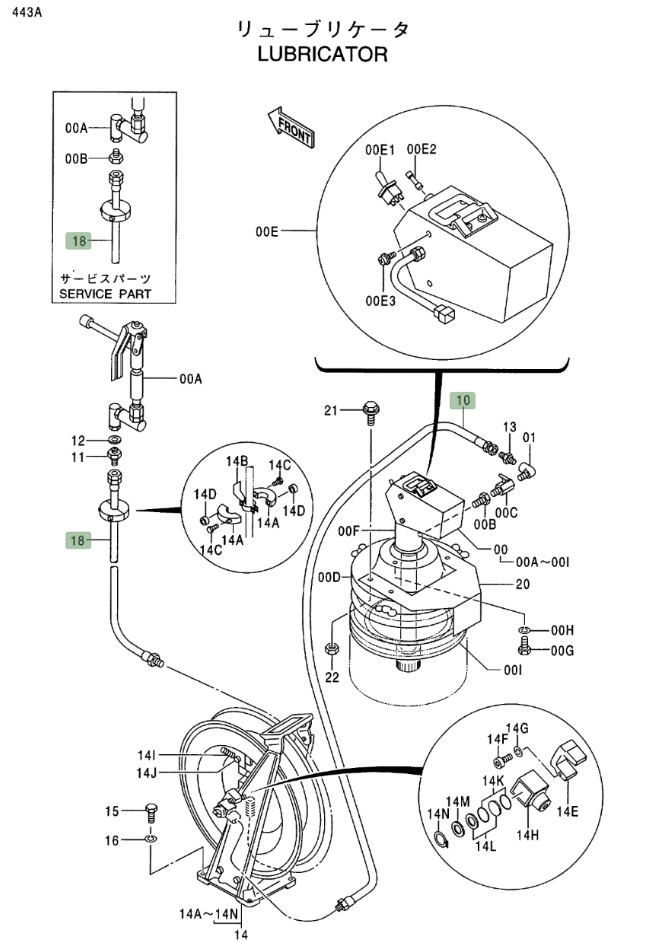

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4353626 before removing the hose.
Repair specifications
- Part number
- 4353626
- Diagram pipe number
- 18
- Installation route
- 黄油软管卷盘~黄油枪
- Hose specification
- DN10;2SN-06;21Mpa
- Finished length
- 10,000 mm
- Working pressure
- 21 MPa
- Left fitting
- 英制外螺纹30°内锥
- Right fitting
- 英制外螺纹30°内锥
- Quantity
- 1
