Individual hose record

4450428 Hose Repair Specifications

Excavator · Hitachi · ZX450LC · Pedal

Finished length650 mm

Locate this hose

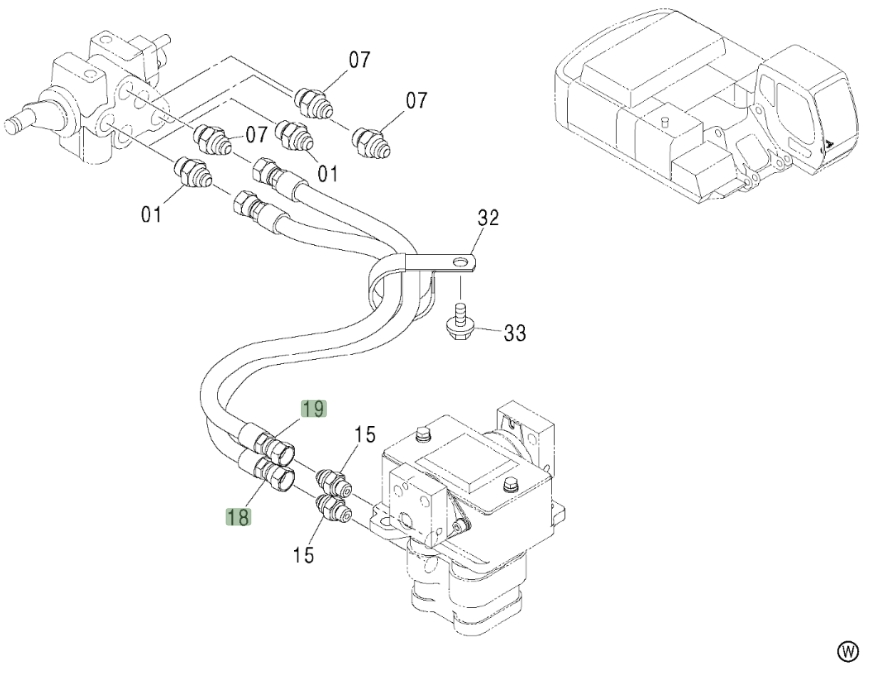

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number 4450428 before removing the hose.

Hitachi ZX450LC installation diagram showing hydraulic hose 4450428 at Pipe No. 19 — Hitachi ZX450LCPart 4450428 · Pipe No. 19Open full-size diagram

Repair specifications

Part number: 4450428
Diagram pipe number: 19
Installation route: 行走踏板~进回油阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 650 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1
