Individual hose record

4285684 Hose Repair Specifications

Excavator · Hitachi · EX100M-3 · Supply and Return Valve

Finished length880 mm

Locate this hose

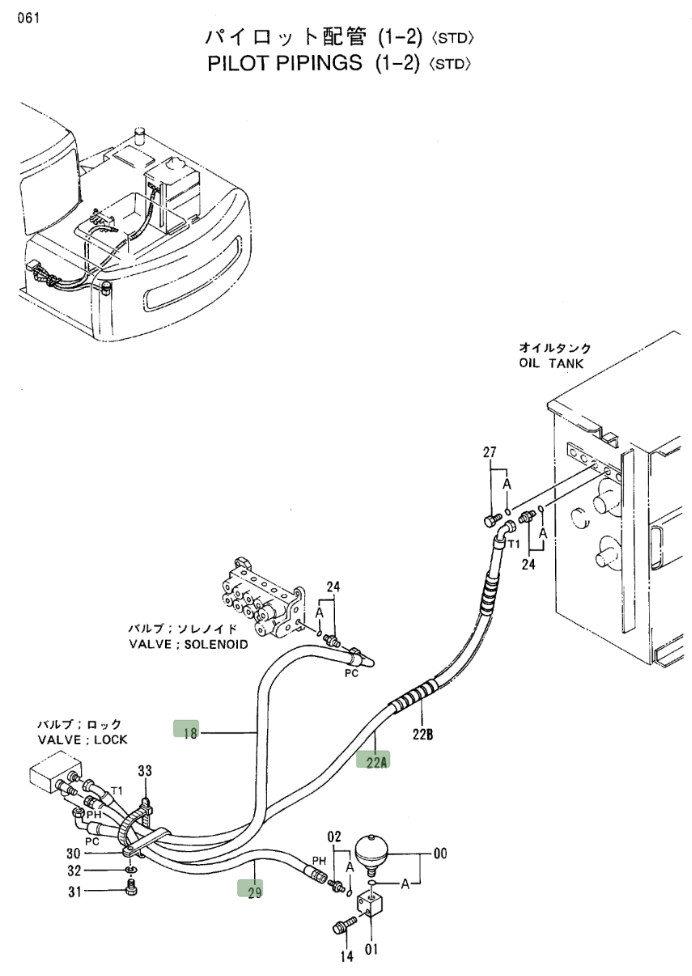

Installation diagram — Pipe No. 29

Locate Pipe No. 29 in the diagram, then confirm part number 4285684 before removing the hose.

Hitachi EX100M-3 installation diagram showing hydraulic hose 4285684 at Pipe No. 29 — Hitachi EX100M-3Part 4285684 · Pipe No. 29Open full-size diagram

Repair specifications

Part number: 4285684
Diagram pipe number: 29
Installation route: 进回油阀~蓄能器
Hose specification: DN6;1SN-4;7Mpa
Finished length: 880 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
