Individual hose record

730502002482 Hose Repair Specifications

Excavator · Sunward · SWE18UF-3 · Swivel Joint

Finished length470 mm

Locate this hose

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 730502002482 before removing the hose.

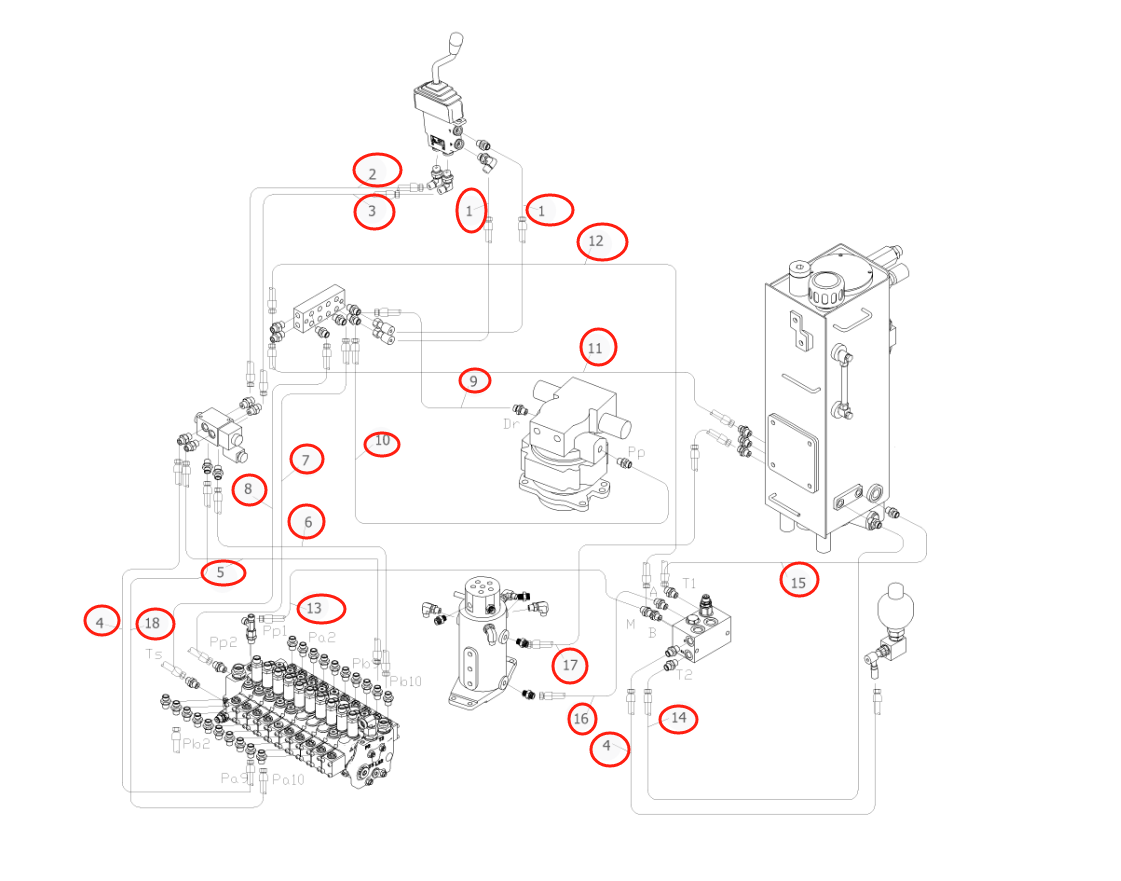

Sunward SWE18UF-3 installation diagram showing hydraulic hose 730502002482 at Pipe No. 16 — Sunward SWE18UF-3Part 730502002482 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 730502002482
Diagram pipe number: 16
Installation route: 回转接头~电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 470 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

73050200A785

Installation route: 回转接头~分配阀B6

Length: 400 mm
Specification: DN6;2SN-04;34.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 7

73050200A158

Installation route: 回转接头~分配阀A9

Length: 480 mm
Specification: DN8;2SN-05;29.3MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
