Individual hose record

73050200A785 Hose Repair Specifications

Excavator · Sunward · SWE18UF-3 · Swivel Joint

Finished length400 mm

Locate this hose

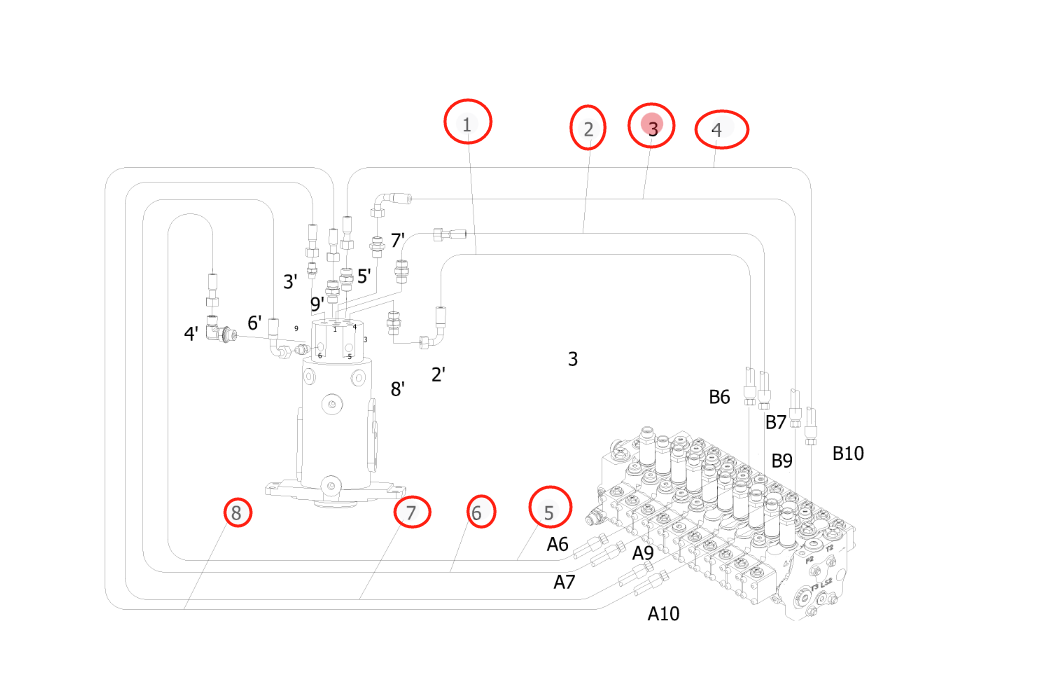

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 73050200A785 before removing the hose.

Sunward SWE18UF-3 installation diagram showing hydraulic hose 73050200A785 at Pipe No. 1 — Sunward SWE18UF-3Part 73050200A785 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 73050200A785
Diagram pipe number: 1
Installation route: 回转接头~分配阀B6
Hose specification: DN6;2SN-04;34.5MPa
Finished length: 400 mm
Working pressure: 34.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 16

730502002482

Installation route: 回转接头~电磁阀

Length: 470 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 7

73050200A158

Installation route: 回转接头~分配阀A9

Length: 480 mm
Specification: DN8;2SN-05;29.3MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
