Individual hose record
4288439 Hose Repair Specifications
Excavator · Hitachi · ZX225USLC-3 · Attachments – Other Kits
Finished length1,500 mm
Locate this hose

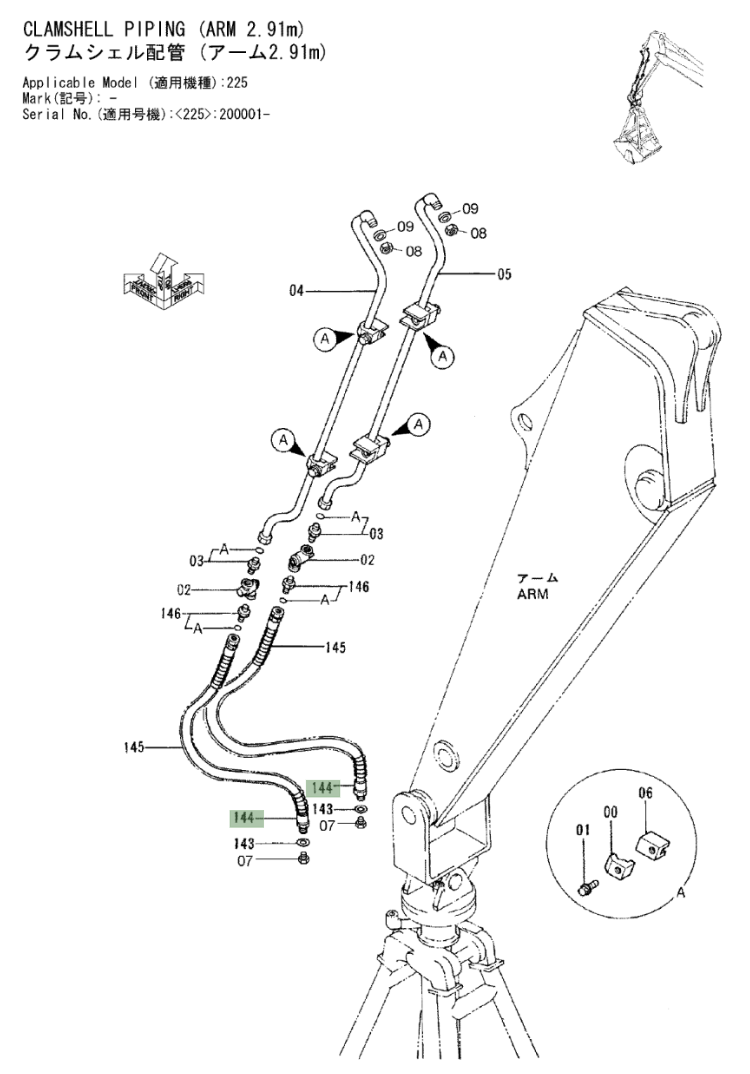

Installation diagram — Pipe No. 144
Locate Pipe No. 144 in the diagram, then confirm part number 4288439 before removing the hose.
Repair specifications
- Part number
- 4288439
- Diagram pipe number
- 144
- Installation route
- 蛤壳斗油缸
- Hose specification
- DN19;4SP-12;34.5Mpa
- Finished length
- 1,500 mm
- Working pressure
- 34.5 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制锥形外螺纹30°内锥
- Quantity
- 2
