- Length
- 1,750 mm
- Specification
- DN16;1SN-10;13Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
Individual hose record
4712022 Hose Repair Specifications
Excavator · Hitachi · ZX135US-3 · Engine Oil Lines
Finished length1,750 mm
Locate this hose

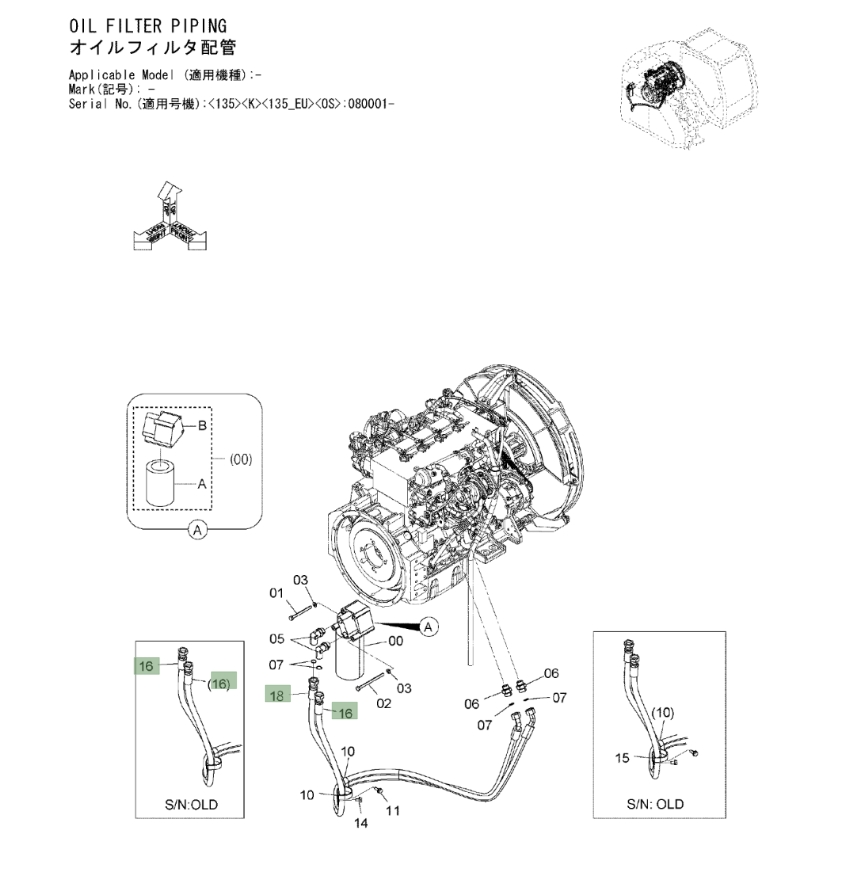

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4712022 before removing the hose.
Repair specifications
- Part number
- 4712022
- Diagram pipe number
- 18
- Installation route
- 机油管
- Hose specification
- DN16;1SN-10;13Mpa
- Finished length
- 1,750 mm
- Working pressure
- 13 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Quantity
- 1
