Individual hose record
KHJ2272 Hose Repair Specifications
Excavator · Case · CX145D SR W/B · Control Lever
Finished length1,300 mm
Locate this hose

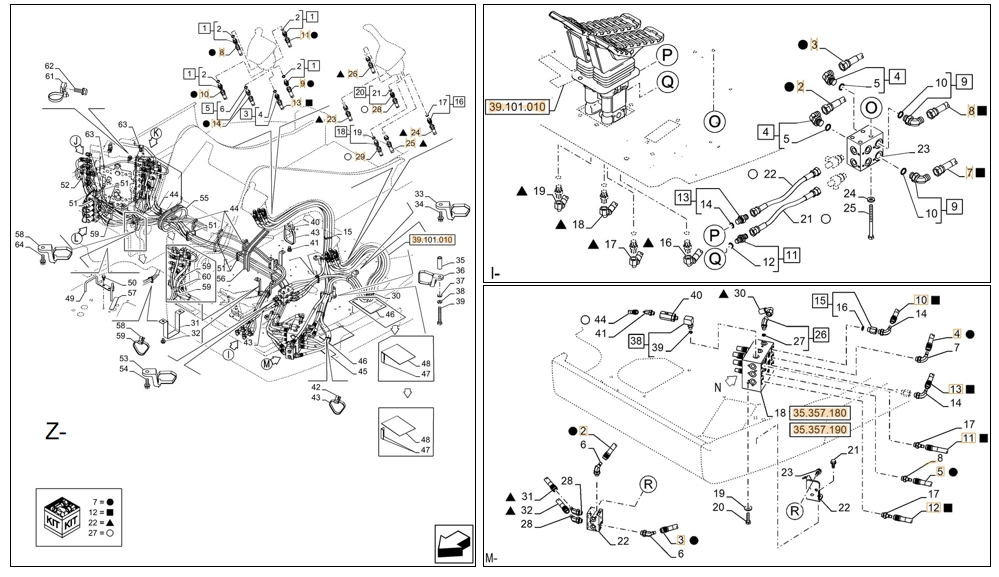

Installation diagram — Pipe No. Z13-I2
Locate Pipe No. Z13-I2 in the diagram, then confirm part number KHJ2272 before removing the hose.
Repair specifications
- Part number
- KHJ2272
- Diagram pipe number
- Z13-I2
- Installation route
- 右手柄~进回油阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,300 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
