Diagram Pipe No. 7
4241338
Installation route: Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
- Length
- 750 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4373781 Hose Repair Specifications
Excavator · Hitachi · EX80-5 · Swing Motor
Finished length850 mm
Locate this hose

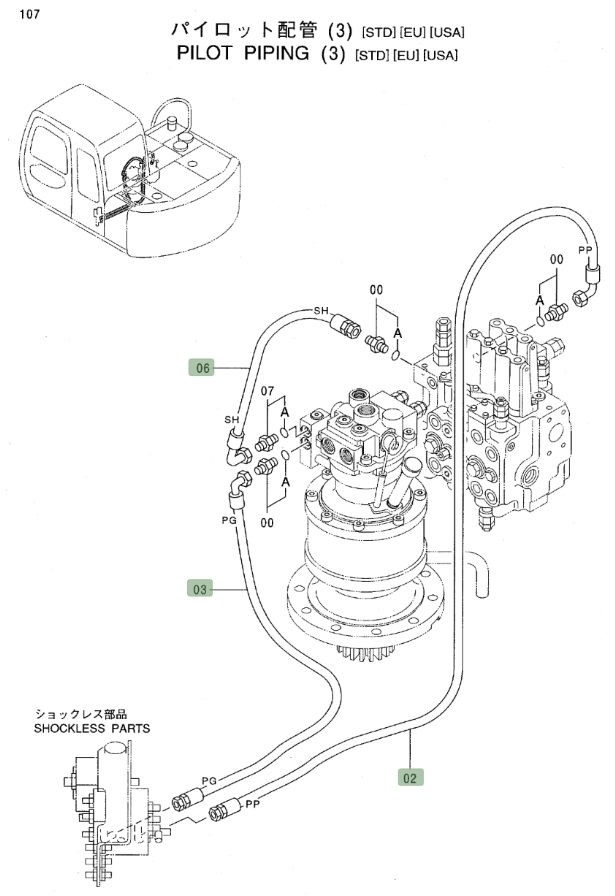

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 4373781 before removing the hose.
Repair specifications
- Part number
- 4373781
- Diagram pipe number
- 3
- Installation route
- 回转马达~中转接头
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 850 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
