Individual hose record

4456707 Hose Repair Specifications

Excavator · Hitachi · ZX225USLC · Control Lever

Finished length1,200 mm

Locate this hose

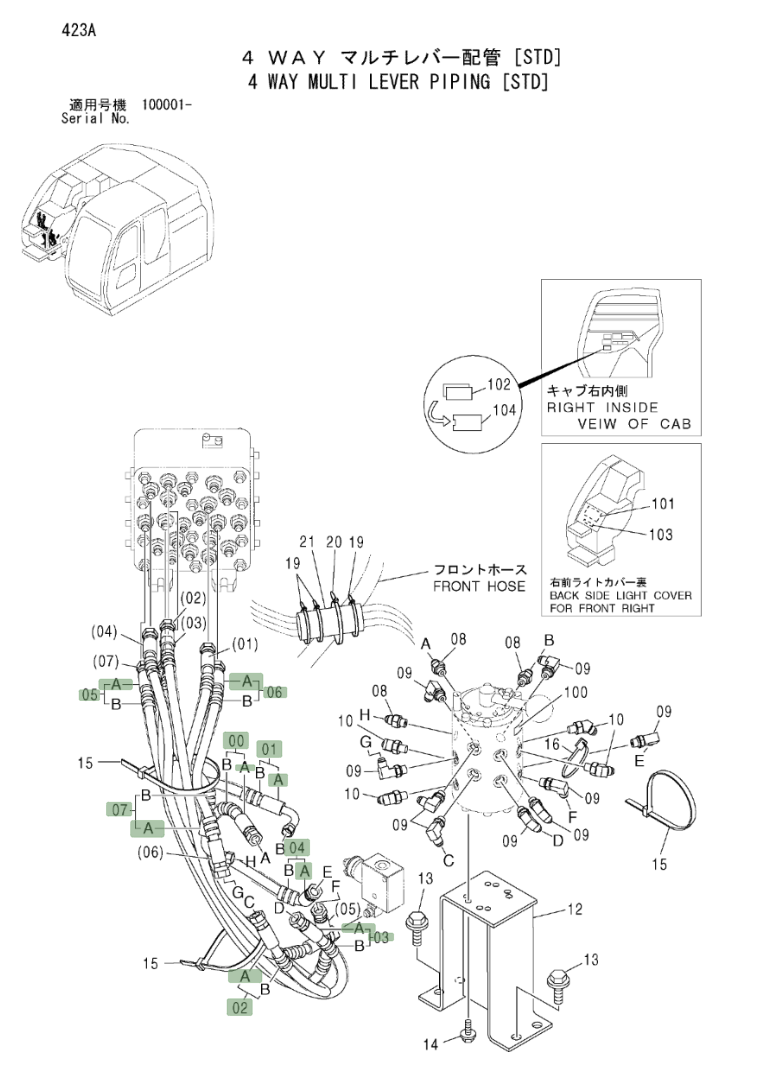

Installation diagram — Pipe No. 2A

Locate Pipe No. 2A in the diagram, then confirm part number 4456707 before removing the hose.

Hitachi ZX225USLC installation diagram showing hydraulic hose 4456707 at Pipe No. 2A — Hitachi ZX225USLCPart 4456707 · Pipe No. 2AOpen full-size diagram

Repair specifications

Part number: 4456707
Diagram pipe number: 2A
Installation route: 模式转换阀~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 1,200 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

4427111

Installation route: 中转接头~分配阀右

Length: 700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 3

4481999

Installation route: 模式转换阀~中转接头

Length: 550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 6A

4456714

Installation route: 模式转换阀~中转接头

Length: 450 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 0A

4456705

Installation route: 模式转换阀~中转接头

Length: 600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
