Individual hose record
4370518 Hose Repair Specifications
Excavator · Hitachi · EX300LC-3C · Control Lever
Finished length490 mm
Locate this hose

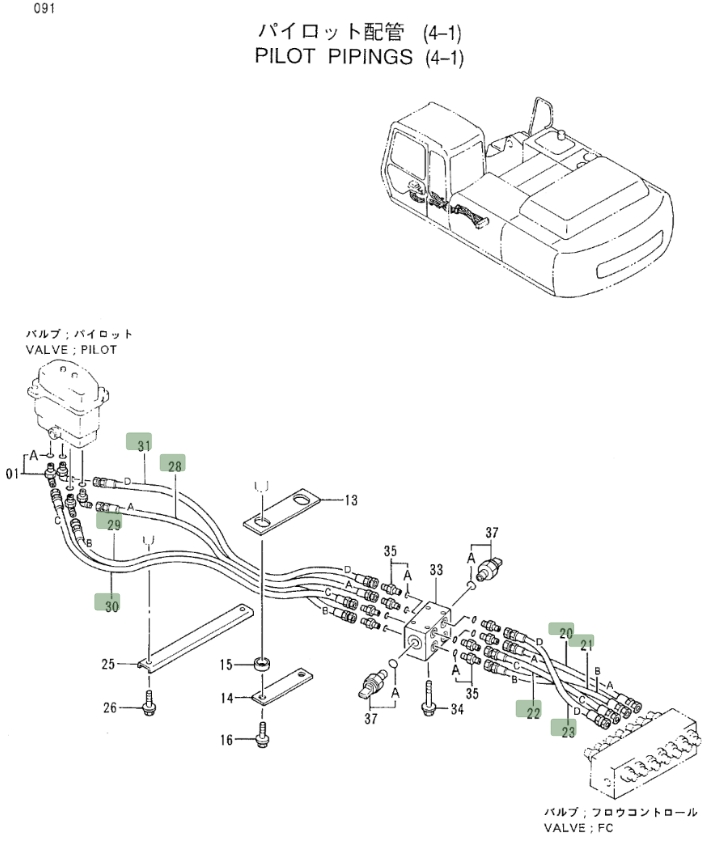

Installation diagram — Pipe No. 23
Locate Pipe No. 23 in the diagram, then confirm part number 4370518 before removing the hose.
Repair specifications
- Part number
- 4370518
- Diagram pipe number
- 23
- Installation route
- 中转接头~过渡阀块(行走踏板)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 490 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
