Individual hose record
4342975 Hose Repair Specifications
Excavator · Hitachi · ZX800 · Grease Lines
Finished length4,600 mm
Locate this hose

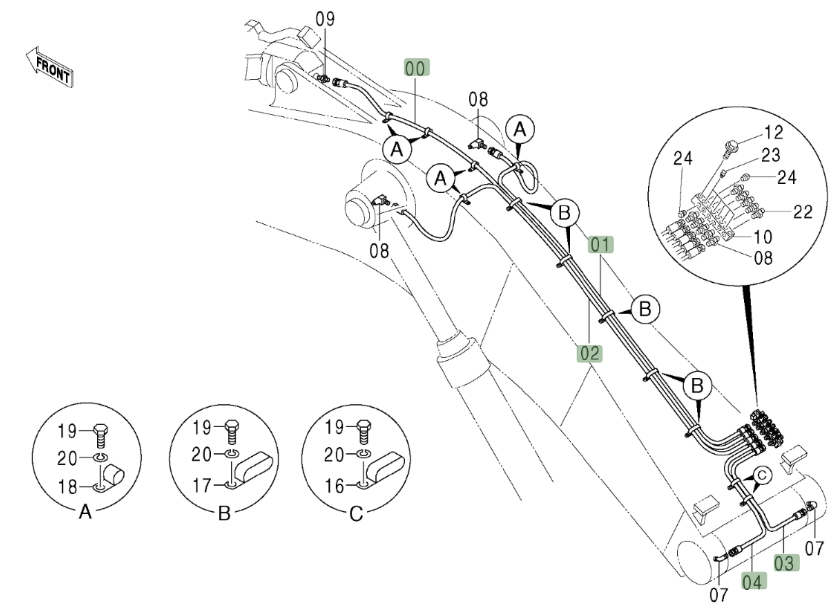

Installation diagram — Pipe No. 0
Locate Pipe No. 0 in the diagram, then confirm part number 4342975 before removing the hose.
Repair specifications
- Part number
- 4342975
- Diagram pipe number
- 0
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 4,600 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
