Individual hose record
4305746 Hose Repair Specifications
Excavator · Hitachi · ZX800 · Grease Lines
Finished length350 mm
Locate this hose

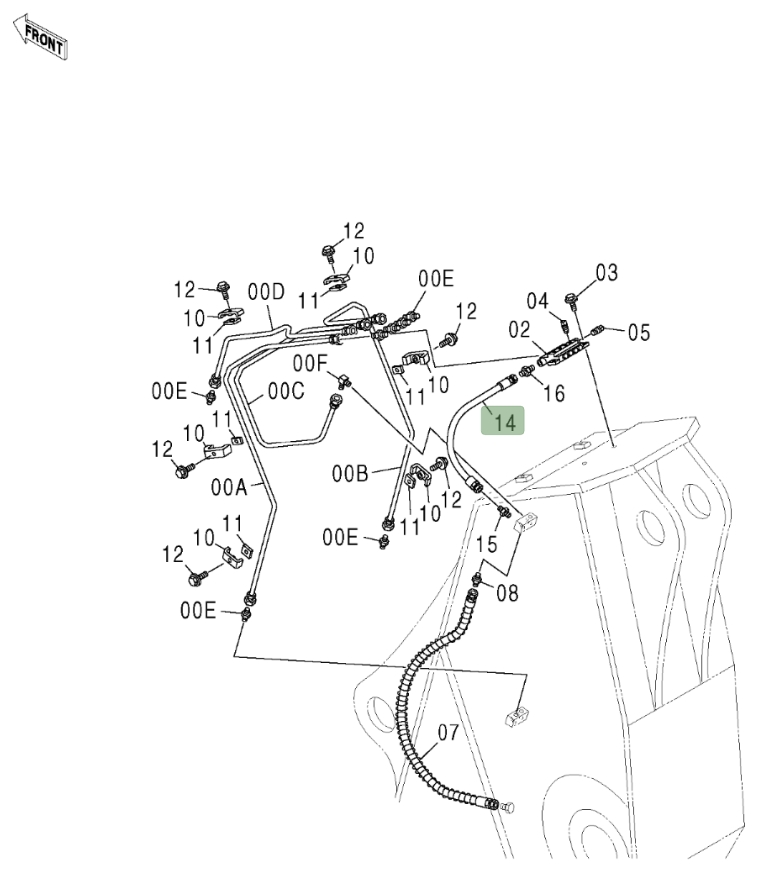

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4305746 before removing the hose.
Repair specifications
- Part number
- 4305746
- Diagram pipe number
- 14
- Installation route
- 小臂黄油管
- Hose specification
- DN6;2SN-4;27.5MPa
- Finished length
- 350 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
