Individual hose record

DH401008 Hose Repair Specifications

Excavator · Hitachi · ZX290F-3 · Hydraulic Pump

Finished length650 mm

Locate this hose

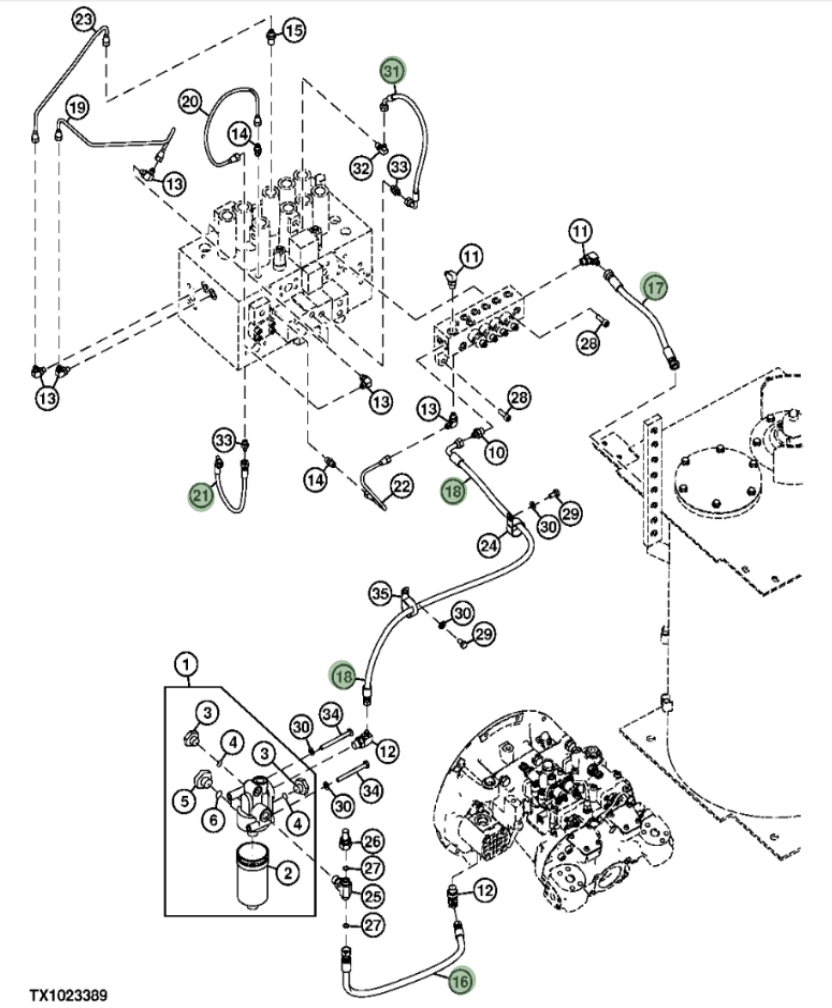

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number DH401008 before removing the hose.

Hitachi ZX290F-3 installation diagram showing hydraulic hose DH401008 at Pipe No. 16 — Hitachi ZX290F-3Part DH401008 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: DH401008
Diagram pipe number: 16
Installation route: 液压泵~先导滤芯
Hose specification: DN10;1SN-6;7Mpa
Finished length: 650 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
