Individual hose record

4234322-S Hose Repair Specifications

Excavator · Hitachi · ZX290F-3 · Hydraulic Pump

Finished length400 mm

Locate this hose

Installation diagram — Pipe No. 72

Locate Pipe No. 72 in the diagram, then confirm part number 4234322-S before removing the hose.

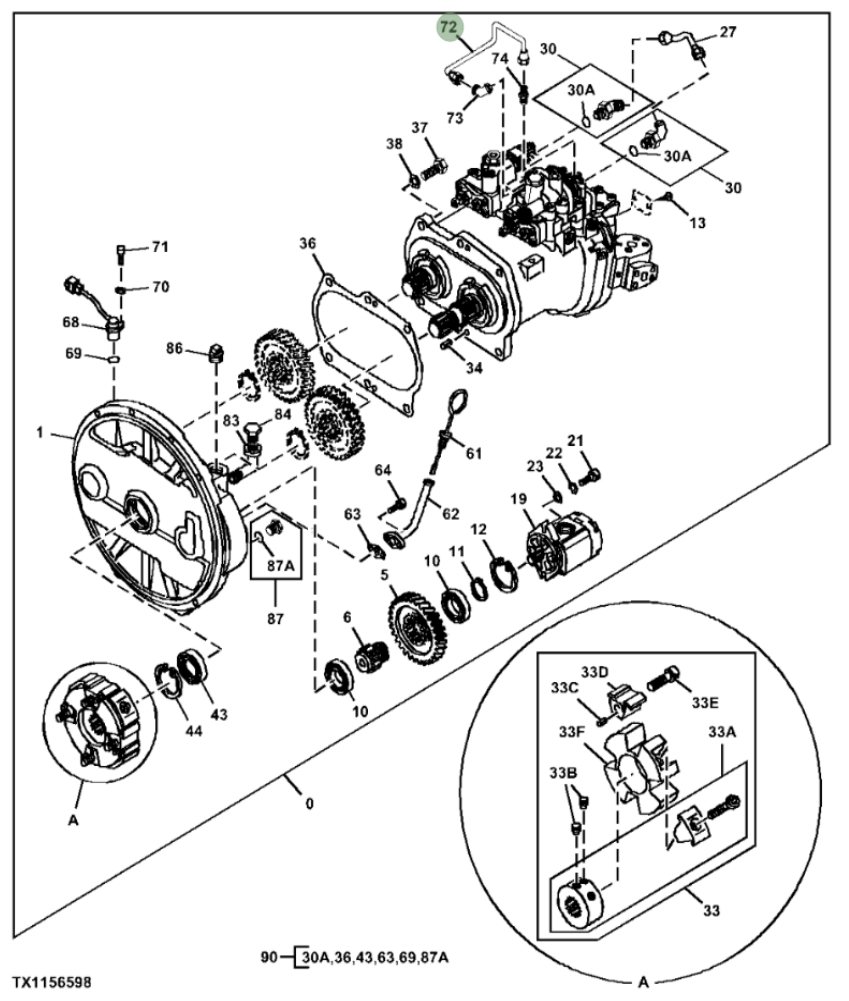

Hitachi ZX290F-3 installation diagram showing hydraulic hose 4234322-S at Pipe No. 72 — Hitachi ZX290F-3Part 4234322-S · Pipe No. 72Open full-size diagram

Repair specifications

Part number: 4234322-S
Diagram pipe number: 72
Installation route: 液压泵左~液压泵右
Hose specification: DN6;1SN-4;7Mpa
Finished length: 400 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 14

4639671

Installation route: 液压泵~中转接头

Length: 1,600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 16

DH401008

Installation route: 液压泵~先导滤芯

Length: 650 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

4642190

Installation route: 液压泵~先导滤芯

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 45°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 15

4639672

Installation route: 液压泵~中转接头

Length: 1,600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥

View full repair specifications
