Individual hose record
4366759 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3C · Attachments
Finished length1,350 mm
Locate this hose

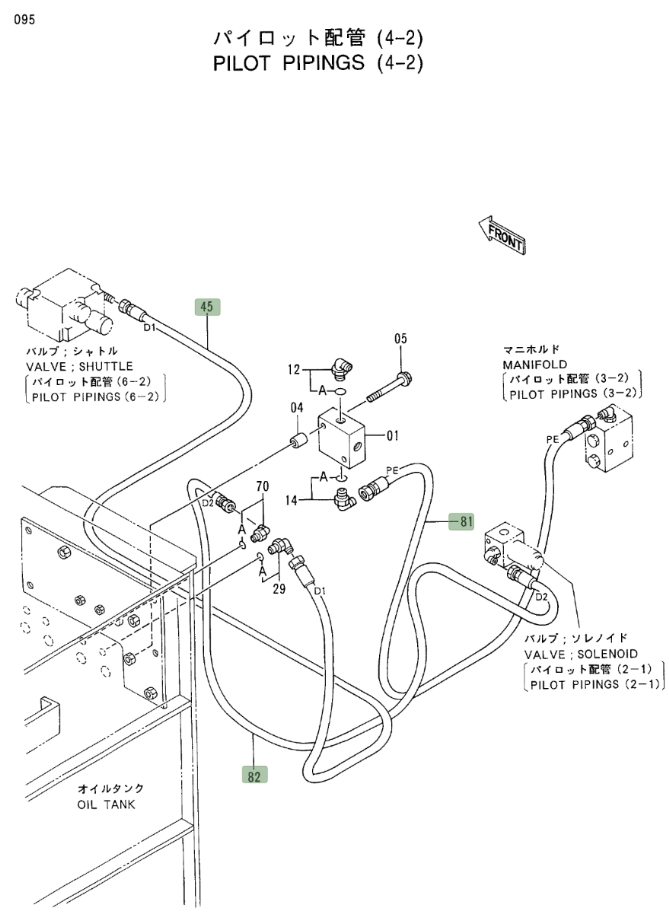

Installation diagram — Pipe No. 81
Locate Pipe No. 81 in the diagram, then confirm part number 4366759 before removing the hose.
Repair specifications
- Part number
- 4366759
- Diagram pipe number
- 81
- Installation route
- 过渡阀块(分配阀)~过渡阀块(液压油箱)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,350 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
