Individual hose record
4333713 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3C · Attachments
Finished length1,100 mm
Locate this hose

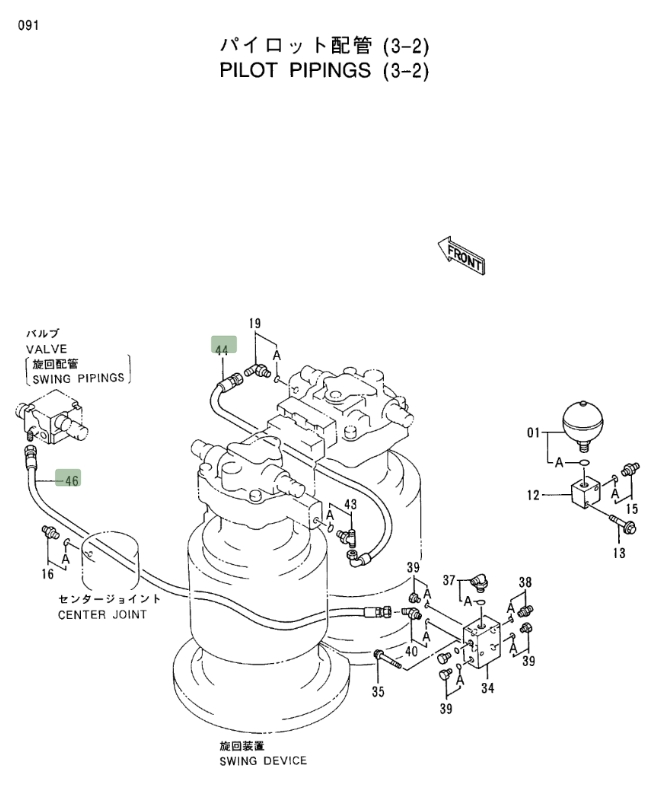

Installation diagram — Pipe No. 46
Locate Pipe No. 46 in the diagram, then confirm part number 4333713 before removing the hose.
Repair specifications
- Part number
- 4333713
- Diagram pipe number
- 46
- Installation route
- 过渡阀块(回转马达)~过渡阀块(分配阀)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,100 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
