Individual hose record
4463269 Hose Repair Specifications
Excavator · Hitachi · ZX80 · Swivel Joint
Finished length950 mm
Locate this hose

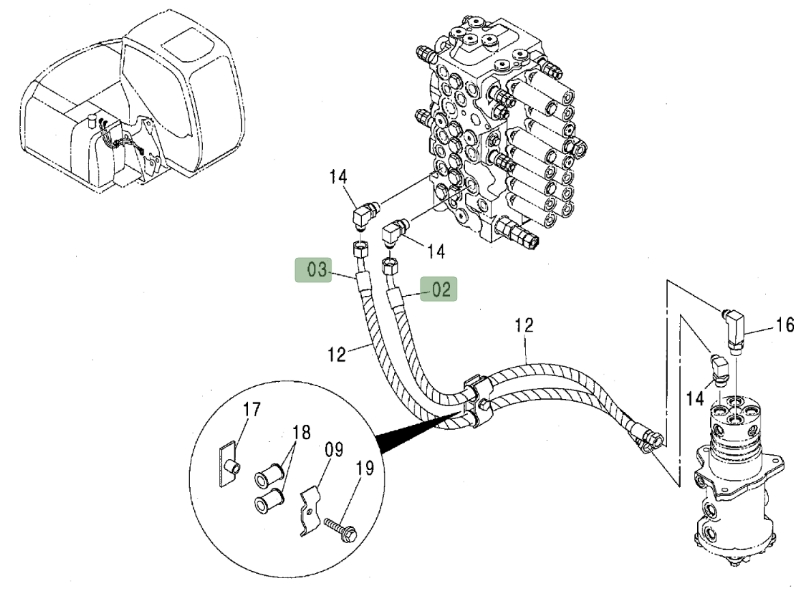

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4463269 before removing the hose.
Repair specifications
- Part number
- 4463269
- Diagram pipe number
- 2
- Installation route
- 回转接头~分配阀后右
- Hose specification
- DN12;4SP-08;41.5MPa
- Finished length
- 950 mm
- Working pressure
- 41.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
