Individual hose record
4692543 Hose Repair Specifications
Excavator · Hitachi · ZX190W-3 · Attachments
Finished length1,650 mm
Locate this hose

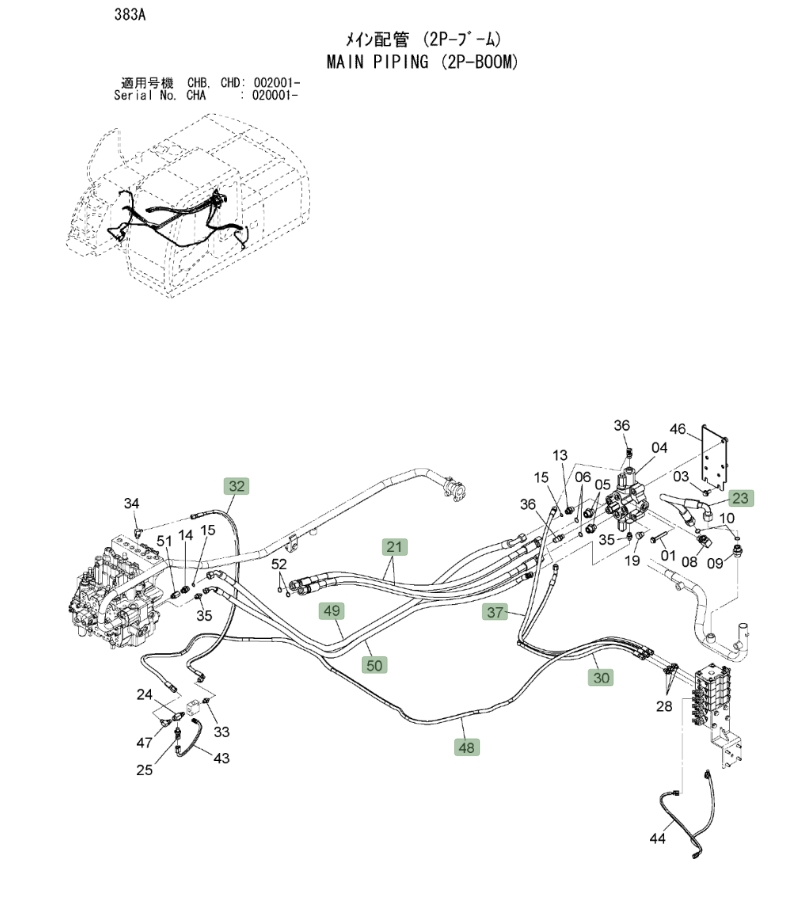

Installation diagram — Pipe No. 37
Locate Pipe No. 37 in the diagram, then confirm part number 4692543 before removing the hose.
Repair specifications
- Part number
- 4692543
- Diagram pipe number
- 37
- Installation route
- 控制阀(分节大臂)~电磁阀(隔板)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,650 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,900 mm
- Specification
- DN10;1SN-6;18MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 1,650 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 350 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 90°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 3,500 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 760 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 3,450 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 1,400 mm
- Specification
- DN19;4SP-12;34.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
