Individual hose record
4374024 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-5G · Swing Motor
Finished length630 mm
Locate this hose

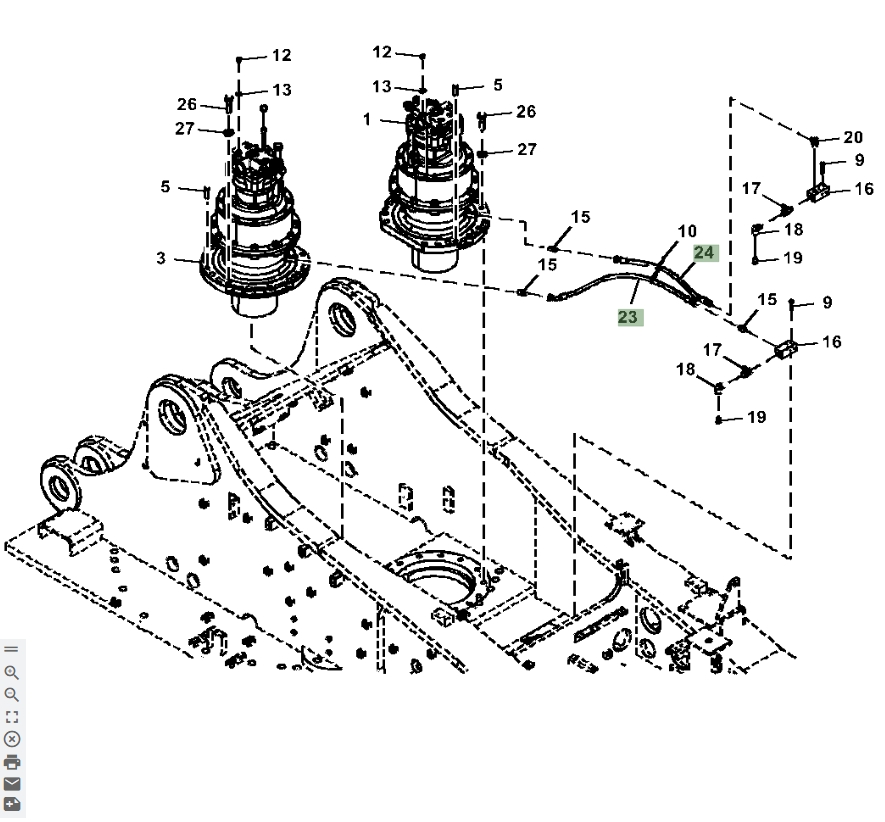

Installation diagram — Pipe No. 24
Locate Pipe No. 24 in the diagram, then confirm part number 4374024 before removing the hose.
Repair specifications
- Part number
- 4374024
- Diagram pipe number
- 24
- Installation route
- 回转马达(左)~排油阀
- Hose specification
- DN12;1SN-8;7MPa
- Finished length
- 630 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
