Individual hose record
9190854 Hose Repair Specifications
Excavator · Hitachi · ZX370 · Control Valve
Finished length500 mm
Locate this hose

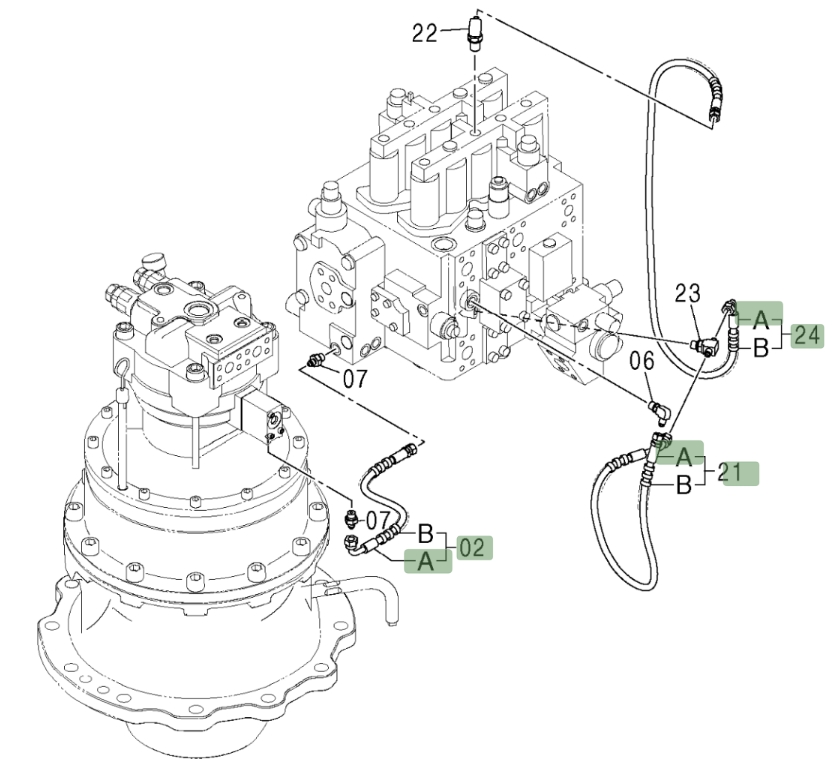

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 9190854 before removing the hose.
Repair specifications
- Part number
- 9190854
- Diagram pipe number
- 2
- Installation route
- 分配阀前~回转马达
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 500 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
