Individual hose record

4724133 Hose Repair Specifications

Excavator · Hitachi · ZX230W-5N · Pedal

Finished length3,200 mm

Locate this hose

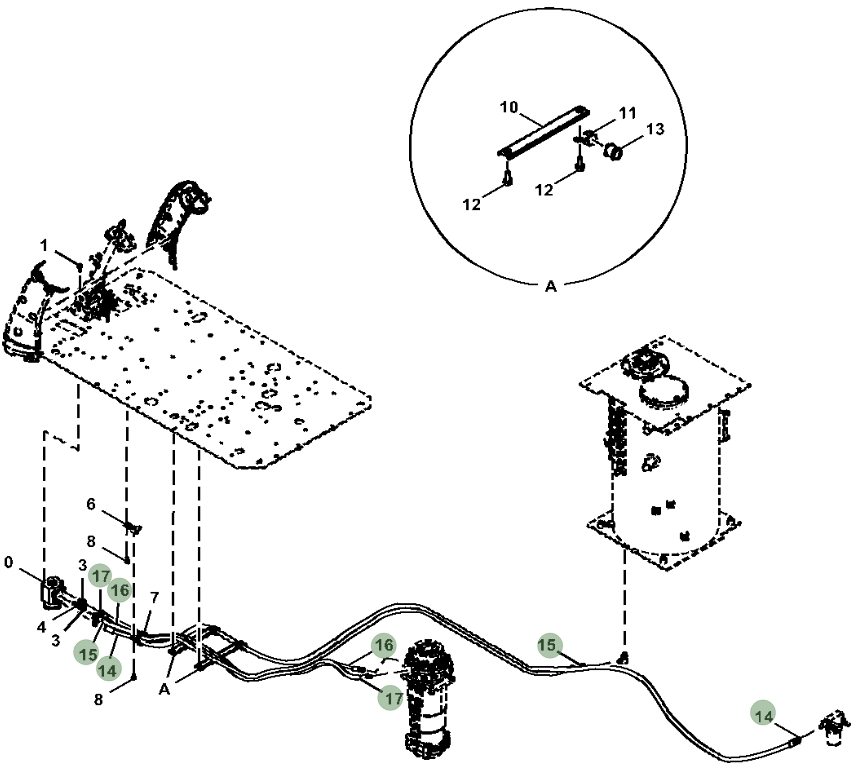

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 4724133 before removing the hose.

Hitachi ZX230W-5N installation diagram showing hydraulic hose 4724133 at Pipe No. 15 — Hitachi ZX230W-5NPart 4724133 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 4724133
Diagram pipe number: 15
Installation route: 方向盘~液压油箱
Hose specification: DN12;1SN-8;7MPa
Finished length: 3,200 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
