Individual hose record
4159776 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-5B · Grease Lines
Finished length800 mm
Locate this hose

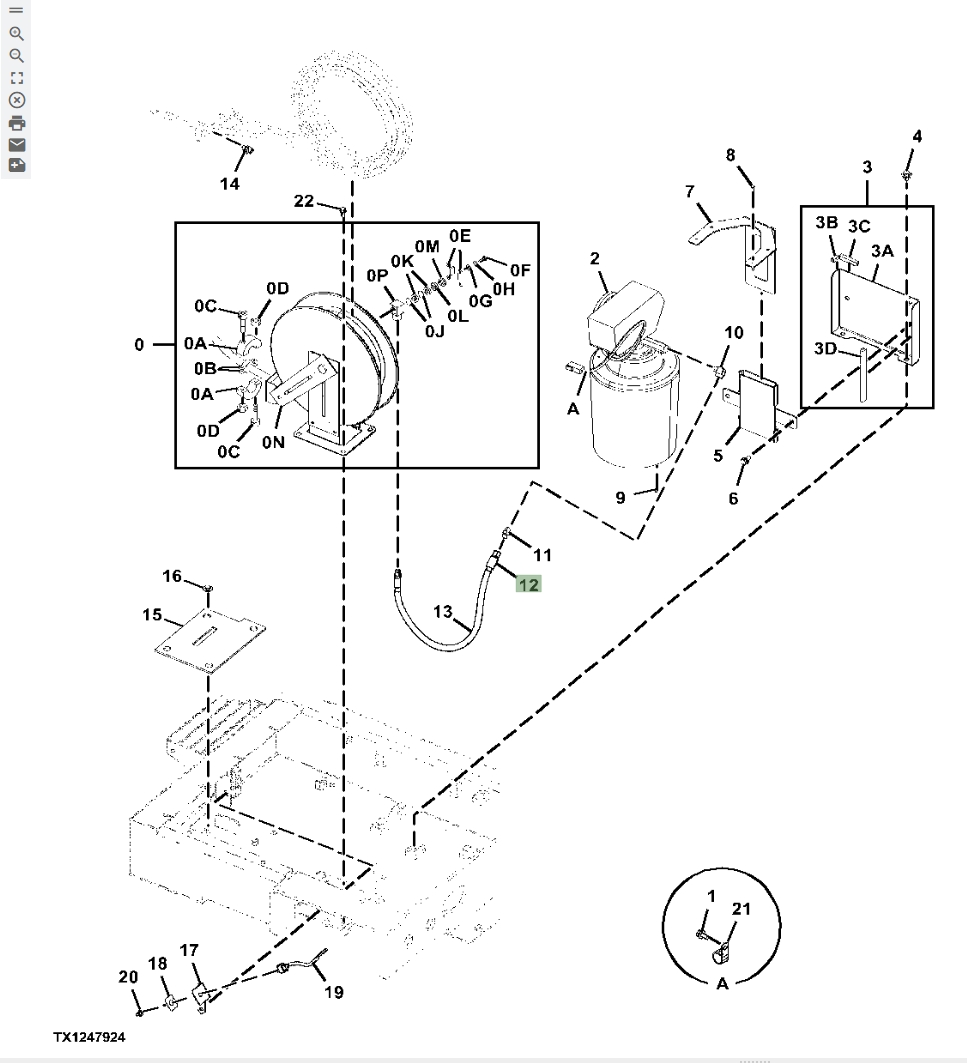

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4159776 before removing the hose.
Repair specifications
- Part number
- 4159776
- Diagram pipe number
- 12
- Installation route
- 黄油泵~黄油软管卷盘
- Hose specification
- DN10;2SN-6;21Mpa
- Finished length
- 800 mm
- Working pressure
- 21 MPa
- Left fitting
- 英制锥形外螺纹
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
