Individual hose record

4628918 Hose Repair Specifications

Excavator · Hitachi · ZX190W-5N · Boom Assembly

Finished length850 mm

Locate this hose

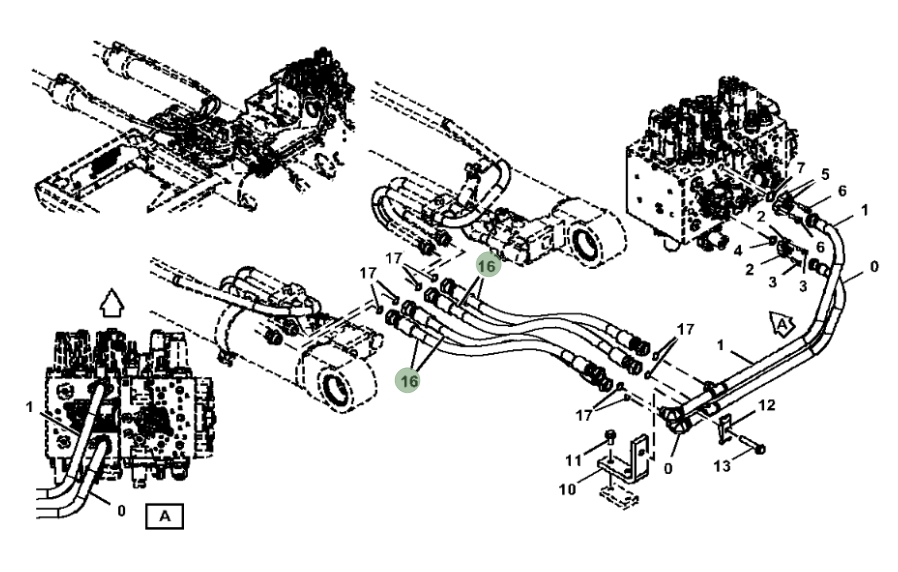

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 4628918 before removing the hose.

Part number: 4628918
Diagram pipe number: 16
Installation route: 大臂油缸
Hose specification: DN16;4SP-10;34.5Mpa
Finished length: 850 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 4

Same system

Diagram Pipe No. 20

Installation route: 大臂左3

Length: 1,300 mm
Specification: DN16;4SP-10;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 0

Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸

Length: 1,350 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
