Individual hose record
73050200A084 Hose Repair Specifications
Excavator · Sunward · SWE150E · Swivel Joint
Finished length720 mm
Locate this hose

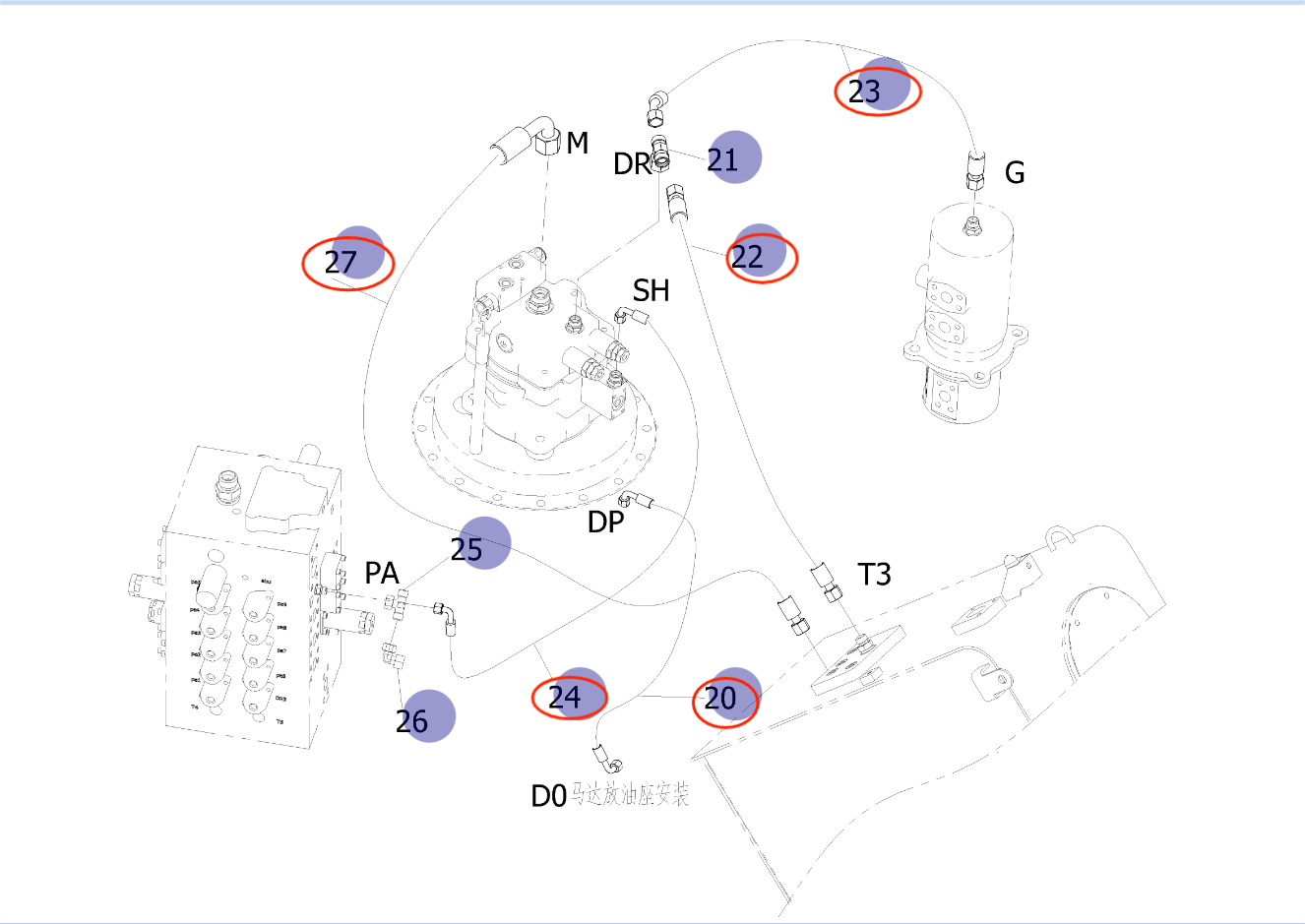

Installation diagram — Pipe No. 23
Locate Pipe No. 23 in the diagram, then confirm part number 73050200A084 before removing the hose.
Repair specifications
- Part number
- 73050200A084
- Diagram pipe number
- 23
- Installation route
- 回转接头G~回转马达DR
- Hose specification
- DN16;1SN-10;13.8MPa
- Finished length
- 720 mm
- Working pressure
- 13.8 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
