Individual hose record
730504000762 Hose Repair Specifications
Excavator · Sunward · SWE150E · Swivel Joint
Finished length1,300 mm
Locate this hose

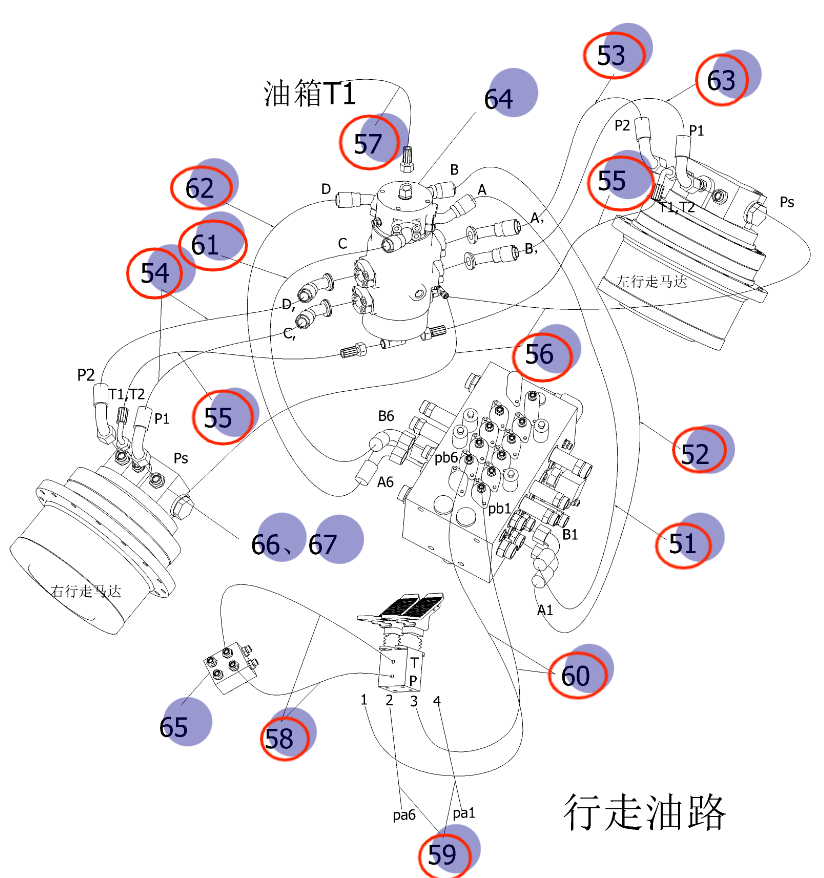

Installation diagram — Pipe No. 51
Locate Pipe No. 51 in the diagram, then confirm part number 730504000762 before removing the hose.
Repair specifications
- Part number
- 730504000762
- Diagram pipe number
- 51
- Installation route
- 回转接头A~分配阀B1
- Hose specification
- DN20;4SH-12;42MPa
- Finished length
- 1,300 mm
- Working pressure
- 42 MPa
- Left fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Quantity
- 1
