Individual hose record

4648997 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-5A · Attachments – Breaker

Finished length2,550 mm

Locate this hose

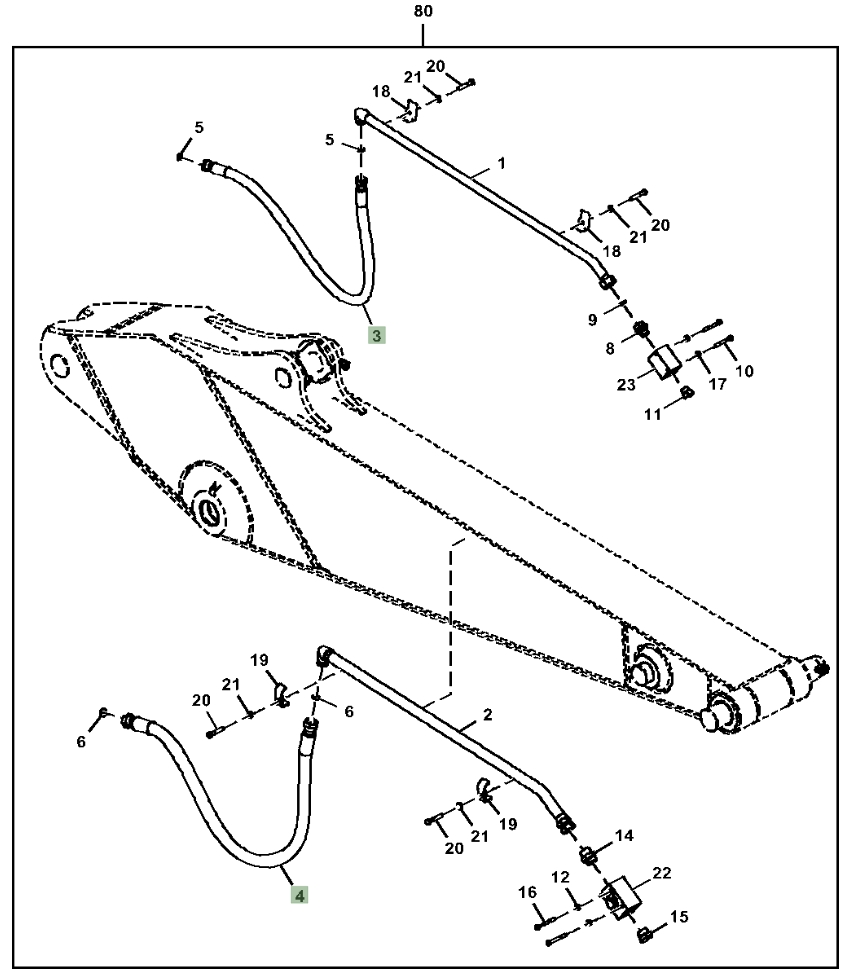

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 4648997 before removing the hose.

Hitachi ZX350LC-5A installation diagram showing hydraulic hose 4648997 at Pipe No. 4 — **Hitachi ZX350LC-5A**Part 4648997 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: 4648997
Diagram pipe number: 4
Installation route: 小臂破碎器截止阀
Hose specification: DN32;4SP-20;35Mpa
Finished length: 2,550 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
