Individual hose record

DS2121137 Hose Repair Specifications

Excavator · Doosan · DX140W-5 · Attachments – Breaker

Finished length500 mm

Locate this hose

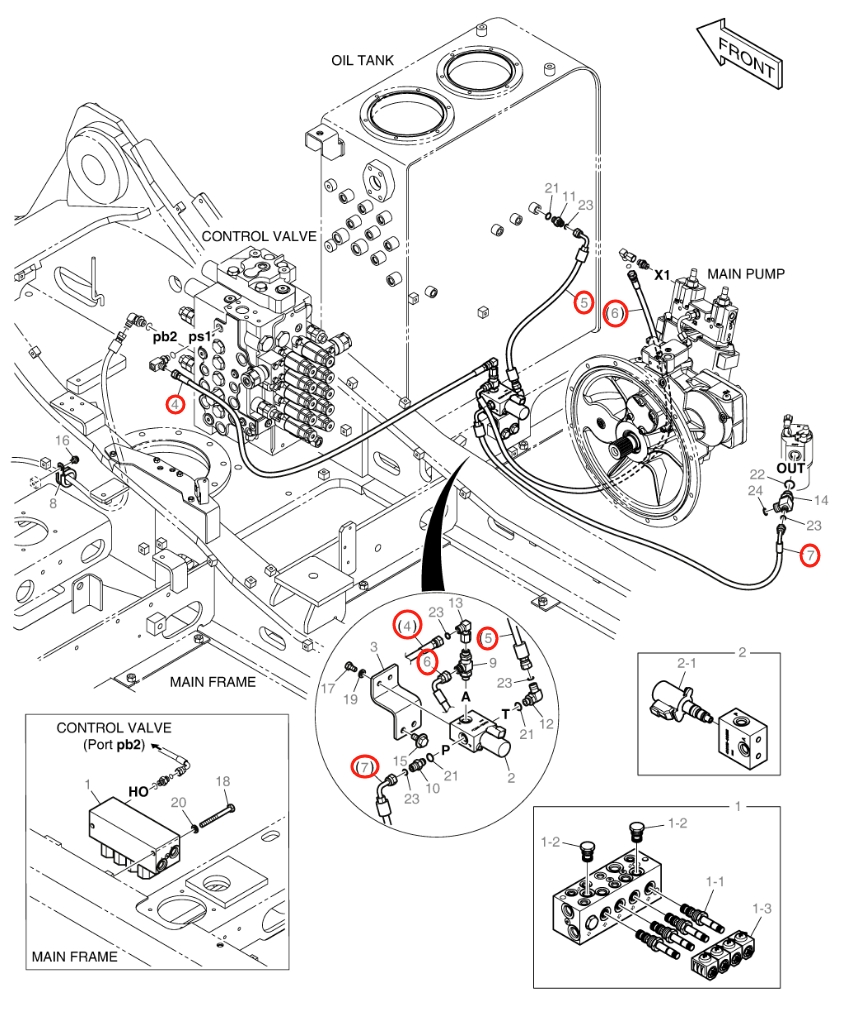

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number DS2121137 before removing the hose.

Part number: DS2121137
Diagram pipe number: 5
Installation route: 液压油箱~EPPR阀T口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 500 mm
Working pressure: 22.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 52

Installation route: 大臂(破碎器)~右过渡接头(破碎器)

Length: 1,200 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
