Individual hose record
DS2011962 Hose Repair Specifications
Excavator · Doosan · DX140W-5 · Attachments – Breaker
Finished length1,200 mm
Locate this hose

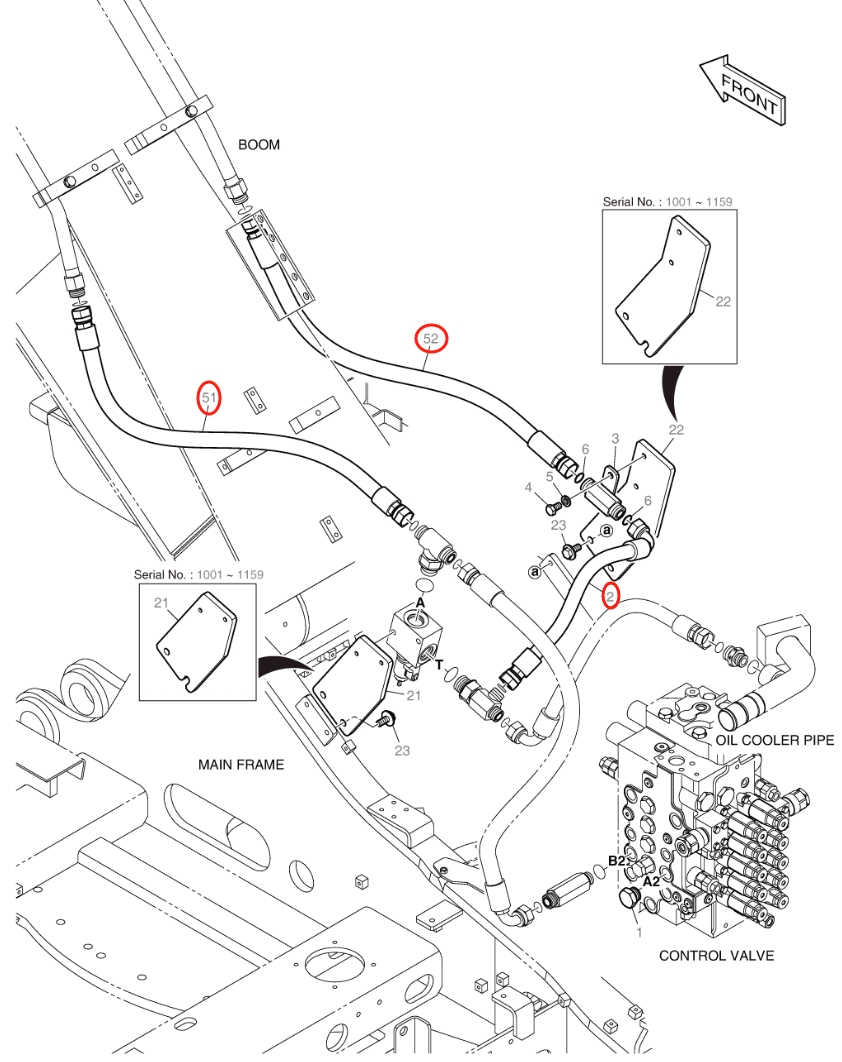

Installation diagram — Pipe No. 52
Locate Pipe No. 52 in the diagram, then confirm part number DS2011962 before removing the hose.
Repair specifications
- Part number
- DS2011962
- Diagram pipe number
- 52
- Installation route
- 大臂(破碎器)~右过渡接头(破碎器)
- Hose specification
- DN19;1SN-12;10.5MPa
- Finished length
- 1,200 mm
- Working pressure
- 10.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
