Individual hose record
4453063 Hose Repair Specifications
Excavator · Hitachi · ZX260FLC-FE-6N · Attachments
Finished length630 mm
Locate this hose

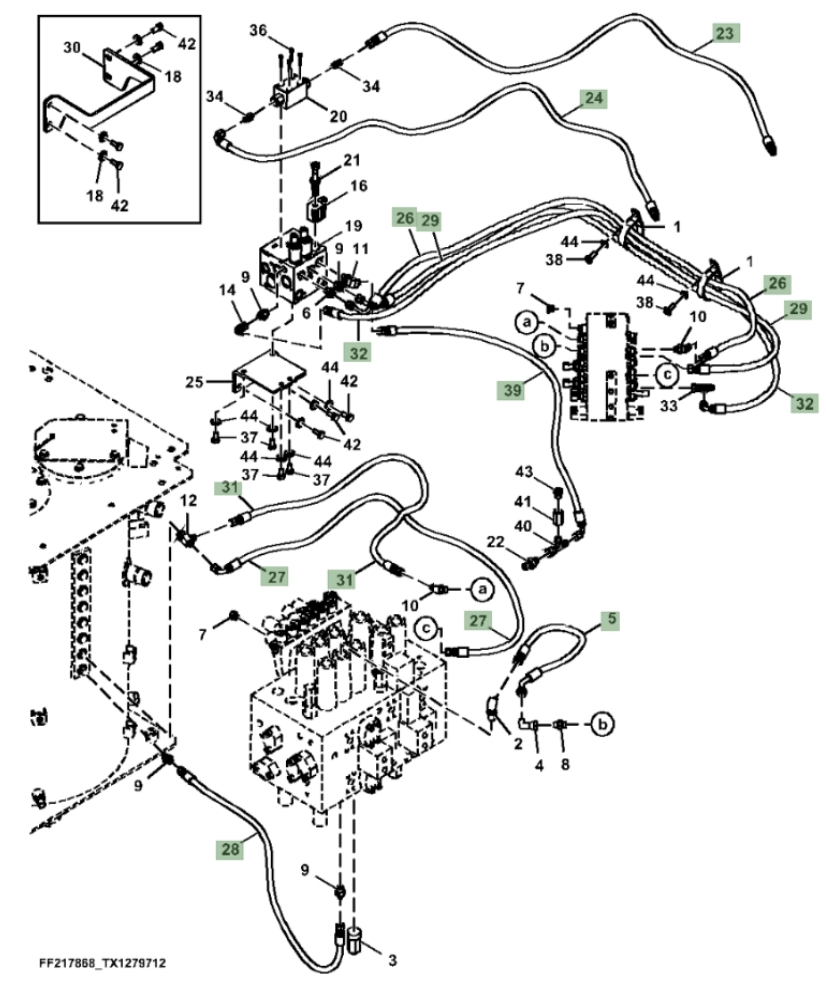

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4453063 before removing the hose.
Repair specifications
- Part number
- 4453063
- Diagram pipe number
- 5
- Installation route
- 中转接头~分配阀上
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 630 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
