Individual hose record

4453171 Hose Repair Specifications

Excavator · Hitachi · EX17U · Swivel Joint

Finished length830 mm

Locate this hose

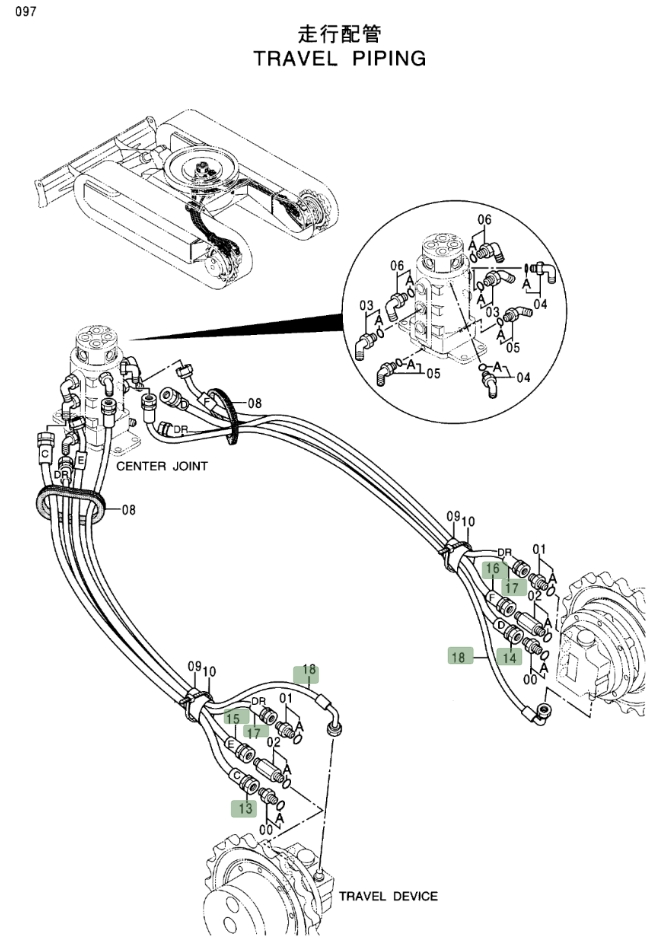

Installation diagram — Pipe No. 17

Locate Pipe No. 17 in the diagram, then confirm part number 4453171 before removing the hose.

Hitachi EX17U installation diagram showing hydraulic hose 4453171 at Pipe No. 17 — Hitachi EX17UPart 4453171 · Pipe No. 17Open full-size diagram

Repair specifications

Part number: 4453171
Diagram pipe number: 17
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN6;2层纤维-4;14MPa
Finished length: 830 mm
Working pressure: 14 MPa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 14

4453168

Installation route: 回转接头~右行走马达

Length: 810 mm
Specification: DN10;2SN-6;20.5MPa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥
