Individual hose record
4622750 Hose Repair Specifications
Excavator · Hitachi · EX1200-7 · Hydraulic Pump
Finished length750 mm
Locate this hose

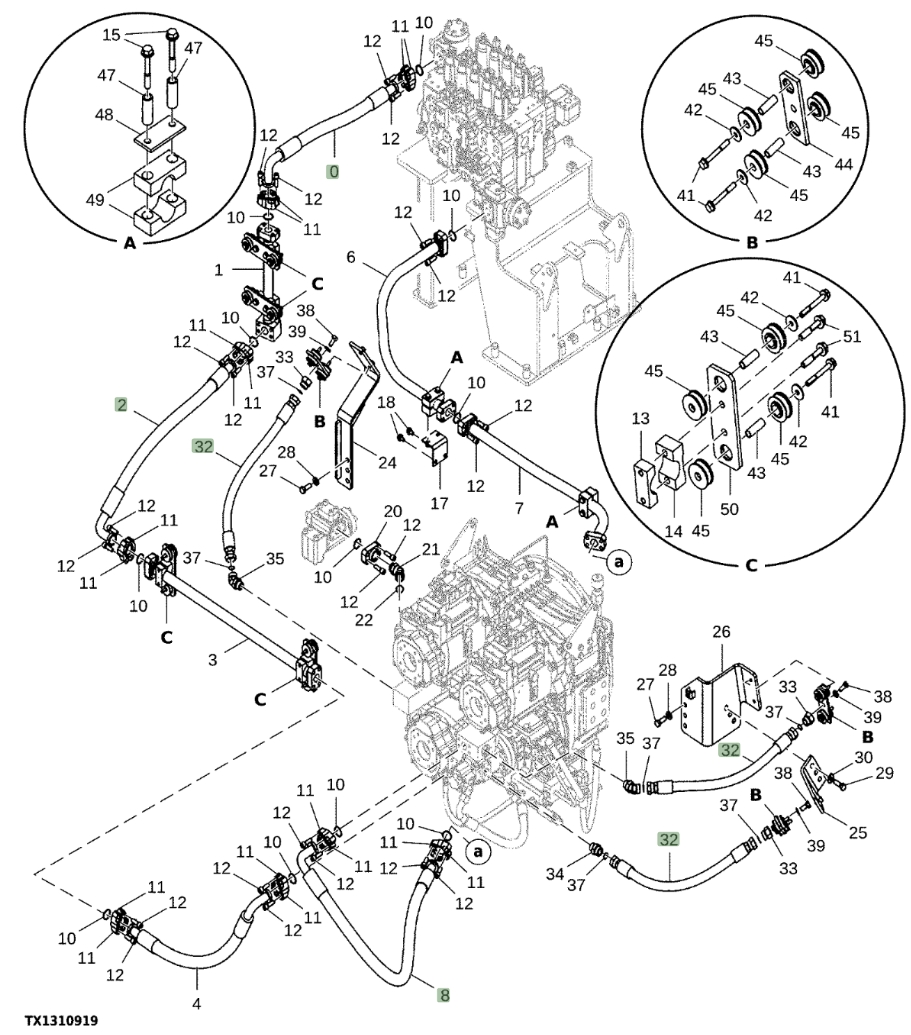

Installation diagram — Pipe No. 32
Locate Pipe No. 32 in the diagram, then confirm part number 4622750 before removing the hose.
Repair specifications
- Part number
- 4622750
- Diagram pipe number
- 32
- Installation route
- 液压泵~堵头(减震管)
- Hose specification
- DN25;4SH-16;38.8MPa
- Finished length
- 750 mm
- Working pressure
- 38.8 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 3
