Individual hose record

4437930 Hose Repair Specifications

Excavator · Hitachi · ZX250F · Solenoid Valve

Finished length1,550 mm

Locate this hose

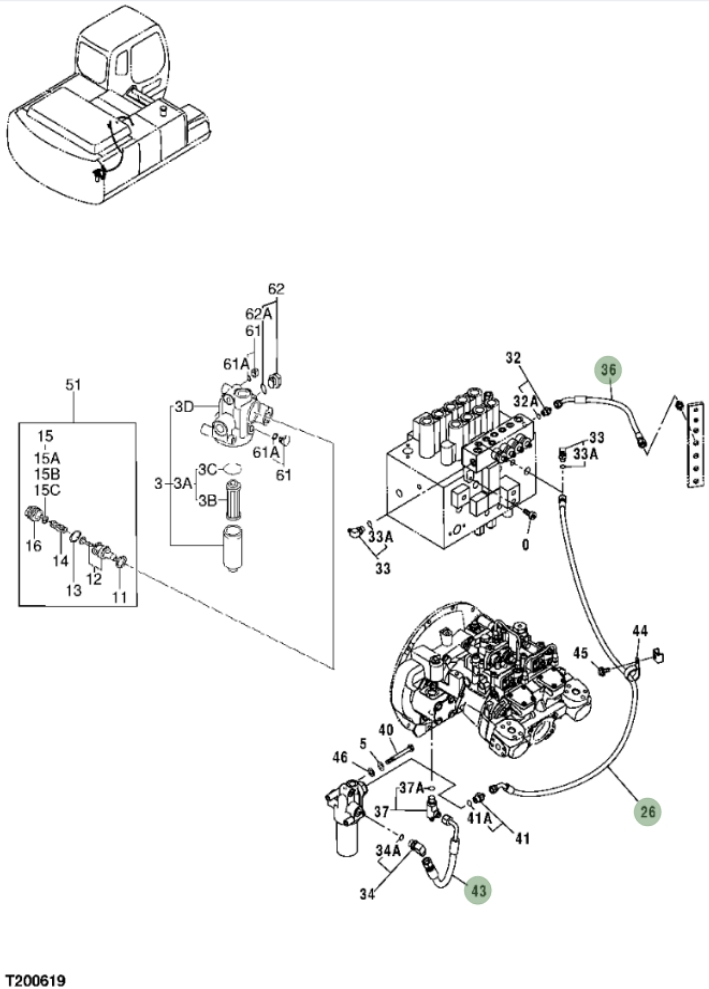

Installation diagram — Pipe No. 26

Locate Pipe No. 26 in the diagram, then confirm part number 4437930 before removing the hose.

Hitachi ZX250F installation diagram showing hydraulic hose 4437930 at Pipe No. 26 — Hitachi ZX250FPart 4437930 · Pipe No. 26Open full-size diagram

Repair specifications

Part number: 4437930
Diagram pipe number: 26
Installation route: 电磁阀~先导滤芯
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,550 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥
Quantity: 1
