Individual hose record
4269806 Hose Repair Specifications
Excavator · Hitachi · ZX85USB-3 · Grease Lines
Finished length1,400 mm
Locate this hose

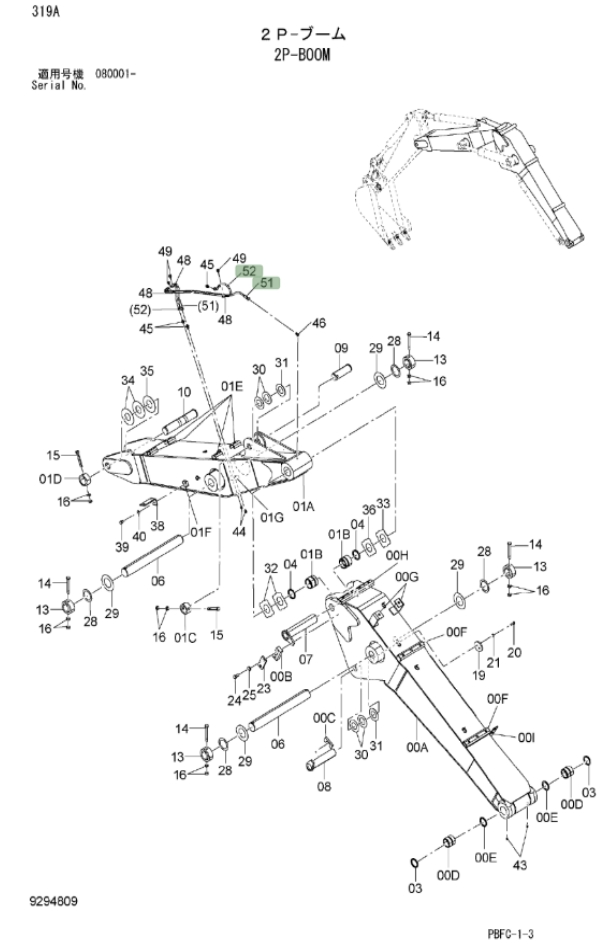

Installation diagram — Pipe No. 51
Locate Pipe No. 51 in the diagram, then confirm part number 4269806 before removing the hose.
Repair specifications
- Part number
- 4269806
- Diagram pipe number
- 51
- Installation route
- 分节大臂销黄油管
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,400 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
