- Length
- 650 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4323003 Hose Repair Specifications
Excavator · Hitachi · ZX60USB-5N · Control Lever
Finished length650 mm
Locate this hose

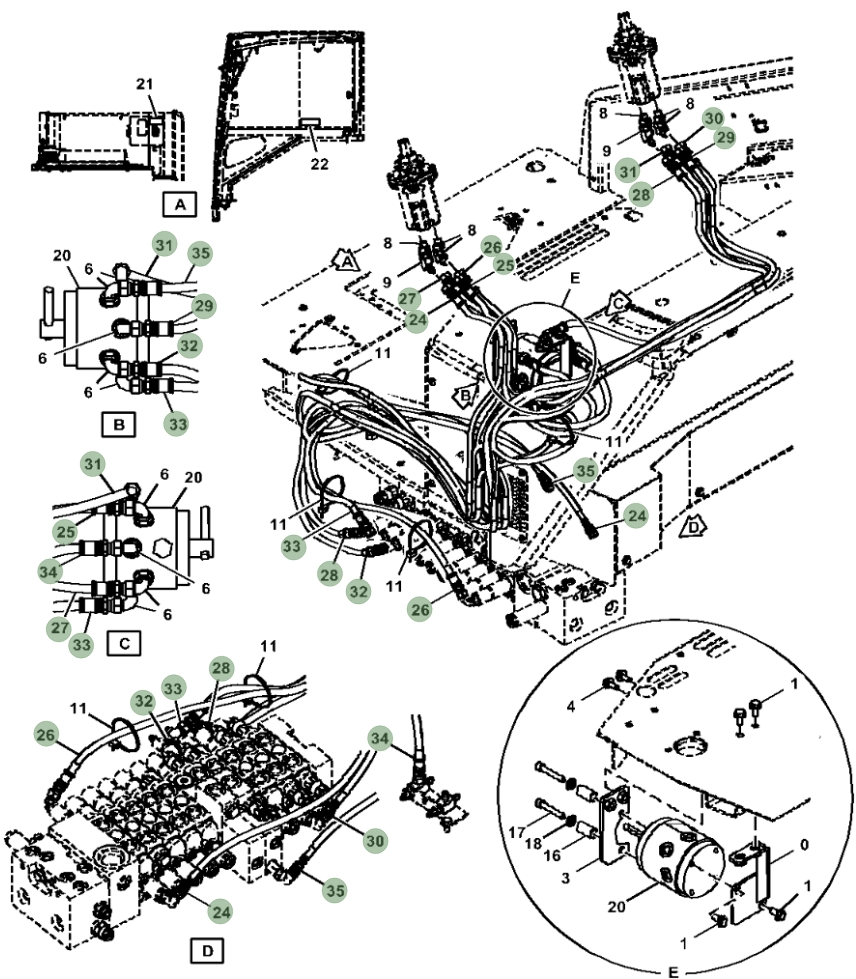

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number 4323003 before removing the hose.
Repair specifications
- Part number
- 4323003
- Diagram pipe number
- 25
- Installation route
- 左手柄~模式转换阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 650 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
