Individual hose record
9263974 Hose Repair Specifications
Excavator · Hitachi · ZX260FLC-LL-6N · Boom Assembly
Finished length1,700 mm
Locate this hose

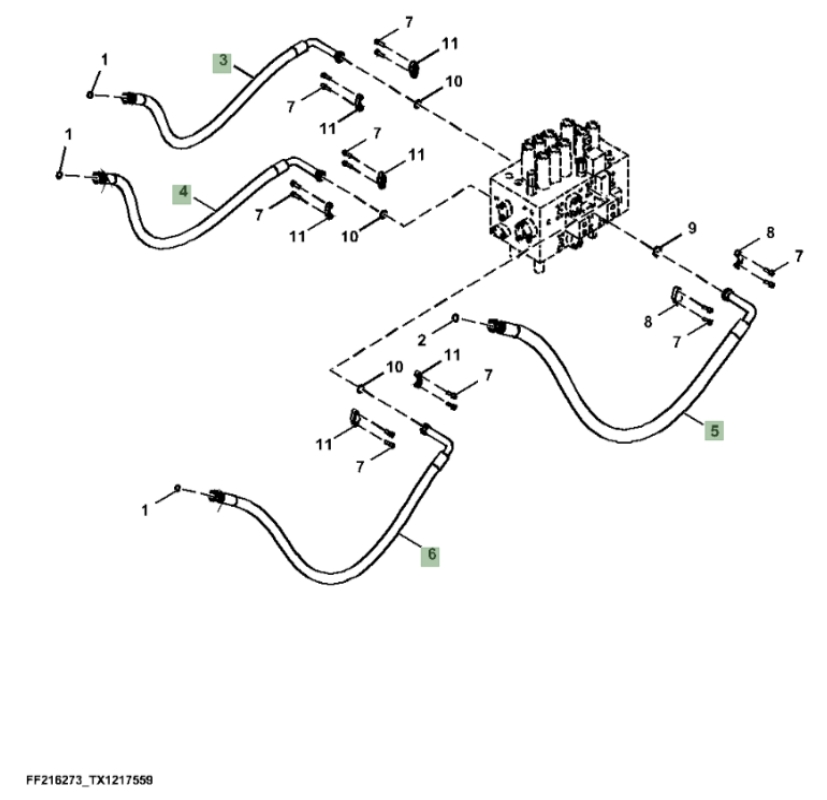

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 9263974 before removing the hose.
Repair specifications
- Part number
- 9263974
- Diagram pipe number
- 5
- Installation route
- 大臂左1
- Hose specification
- DN25;4SP-16;35Mpa
- Finished length
- 1,700 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Quantity
- 1
