- Length
- 1,700 mm
- Specification
- DN25;4SP-16;35Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
Individual hose record
4614162 Hose Repair Specifications
Excavator · Hitachi · ZX260FLC-LL-6N · Boom Assembly
Finished length850 mm
Locate this hose

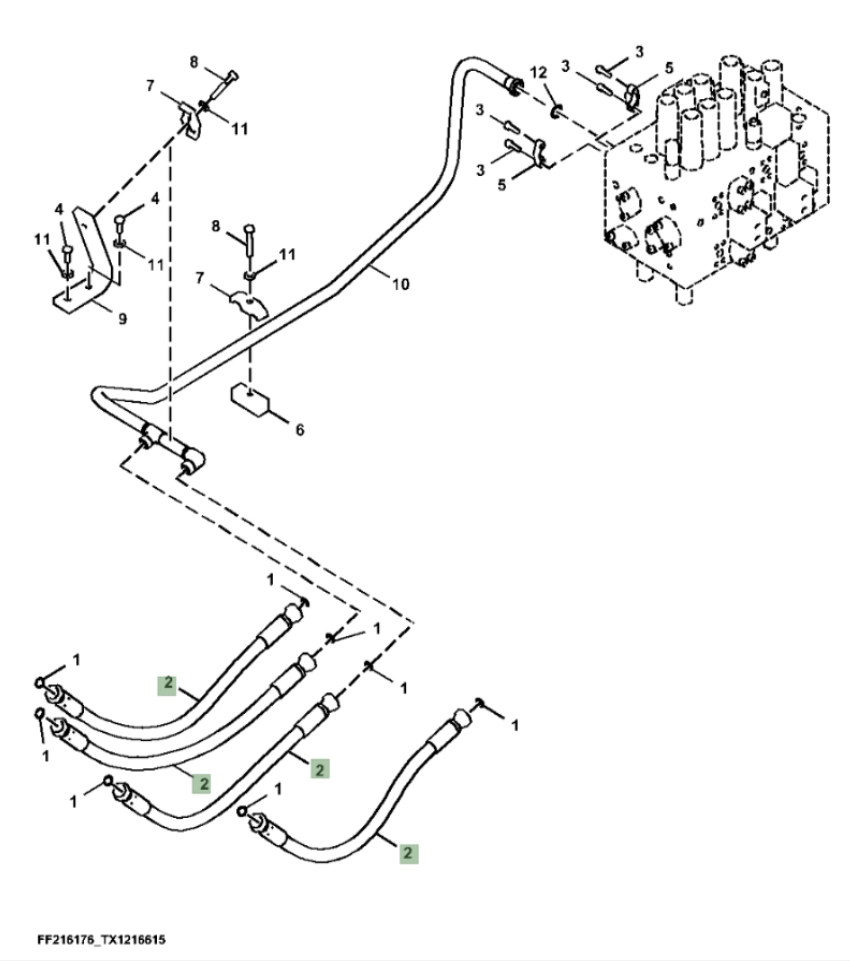

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4614162 before removing the hose.
Repair specifications
- Part number
- 4614162
- Diagram pipe number
- 2
- Installation route
- 大臂油缸
- Hose specification
- DN19;4SH-12;42MPa
- Finished length
- 850 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 4
