Individual hose record

KHJ2194 Hose Repair Specifications

Excavator · Case · CX240E NHD · Control Valve

Finished length650 mm

Locate this hose

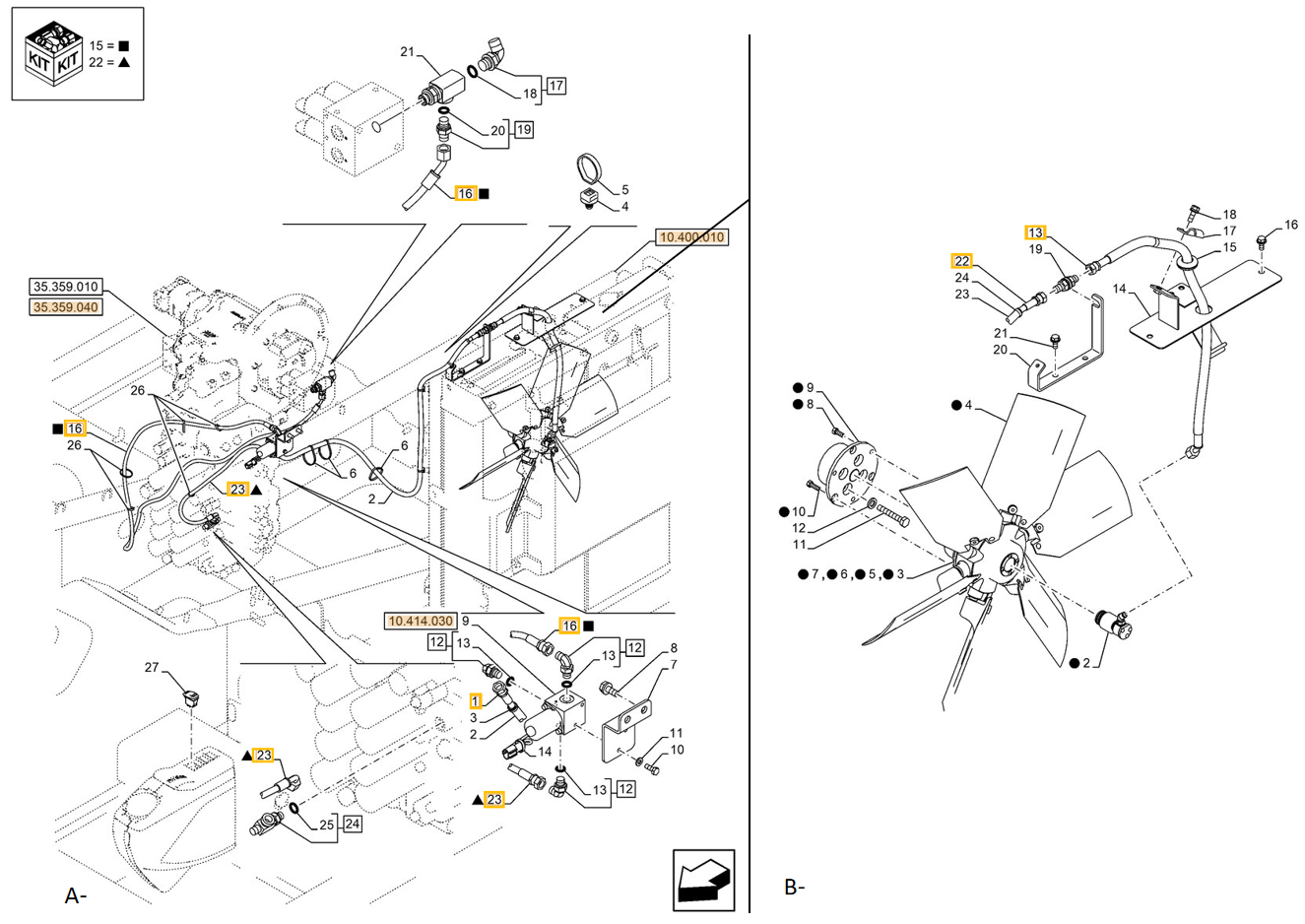

Installation diagram — Pipe No. 23

Locate Pipe No. 23 in the diagram, then confirm part number KHJ2194 before removing the hose.

Case CX240E NHD installation diagram showing hydraulic hose KHJ2194 at Pipe No. 23
Case CX240E NHDPart KHJ2194 · Pipe No. 23Open full-size diagram

Repair specifications

Part number
KHJ2194
Diagram pipe number
23
Installation route
分配阀前左~电磁阀(散热器)
Hose specification
DN6;1SN-04;22.5MPa
Finished length
650 mm
Working pressure
22.5 MPa
Left fitting
90°英制内螺纹60°内锥
Right fitting
英制内螺纹60°内锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. B24

KHJ2190

Installation route: 分配阀后左~电磁阀(分配阀)

Length
420 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. B22-C22

KHJ13800

Installation route: 分配阀前左~液压油箱

Length
1,350 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. F36-G36

KHJ2142

Installation route: 分配阀前右~电磁阀(分配阀)

Length
500 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. F38-G38

KHJ14910

Installation route: 分配阀前右~电磁阀(分配阀)

Length
800 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. F34-G34

KHJ2239

Installation route: 分配阀前左~电磁阀(分配阀)

Length
520 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. H20

KHJ2342

Installation route: 分配阀前左~分配阀前右

Length
380 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
View full repair specifications
