Individual hose record

KHJ2142 Hose Repair Specifications

Excavator · Case · CX240E NHD · Control Valve

Finished length500 mm

Locate this hose

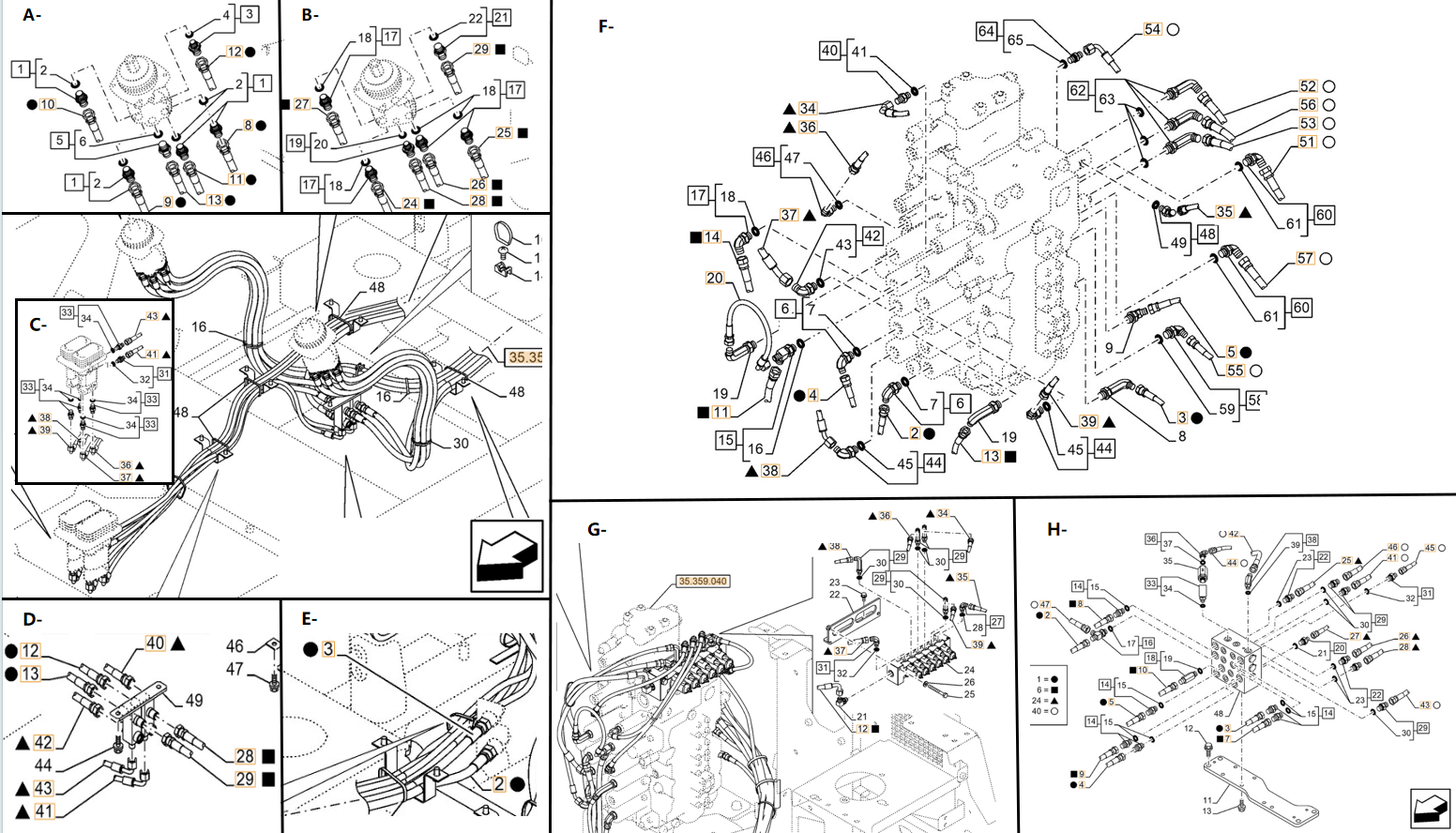

Installation diagram — Pipe No. F36-G36

Locate Pipe No. F36-G36 in the diagram, then confirm part number KHJ2142 before removing the hose.

Part number: KHJ2142
Diagram pipe number: F36-G36
Installation route: 分配阀前右~电磁阀(分配阀)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 500 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. B24

Installation route: 分配阀后左~电磁阀(分配阀)

Length: 420 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 23

Installation route: 分配阀前左~电磁阀(散热器)

Diagram Pipe No. B22-C22

Installation route: 分配阀前左~液压油箱

Length: 1,350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. F38-G38

Installation route: 分配阀前右~电磁阀(分配阀)

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. F34-G34

Installation route: 分配阀前左~电磁阀(分配阀)

Length: 520 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. H20

Installation route: 分配阀前左~分配阀前右

Length: 380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
