Individual hose record
4252872 Hose Repair Specifications
Excavator · Hitachi · ZX75US-3 · Attachments – Breaker
Finished length520 mm
Locate this hose

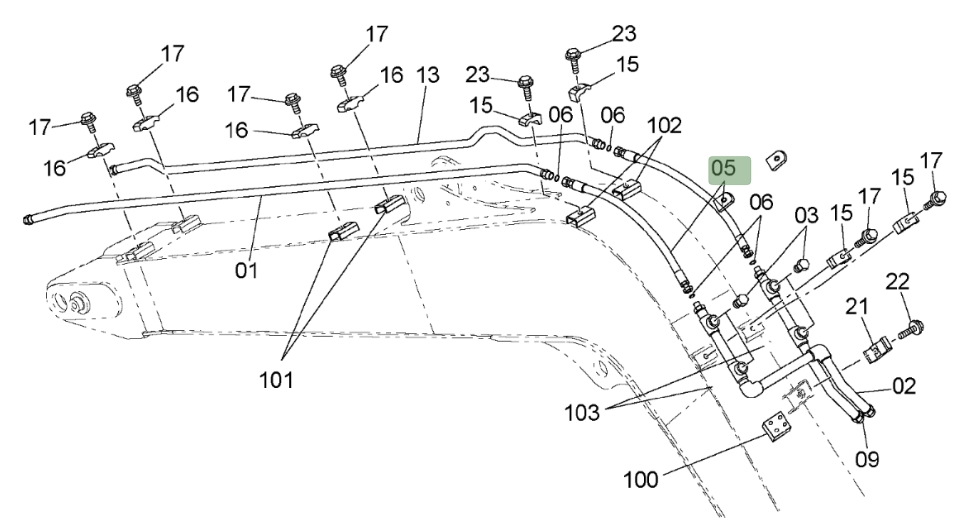

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4252872 before removing the hose.
Repair specifications
- Part number
- 4252872
- Diagram pipe number
- 5
- Installation route
- 大臂(前段)~大臂(后段)
- Hose specification
- DN19;4SP-12;38Mpa
- Finished length
- 520 mm
- Working pressure
- 38 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
