Individual hose record

9303371 Hose Repair Specifications

Excavator · Hitachi · ZX75US-3 · Attachments – Breaker

Finished length850 mm

Locate this hose

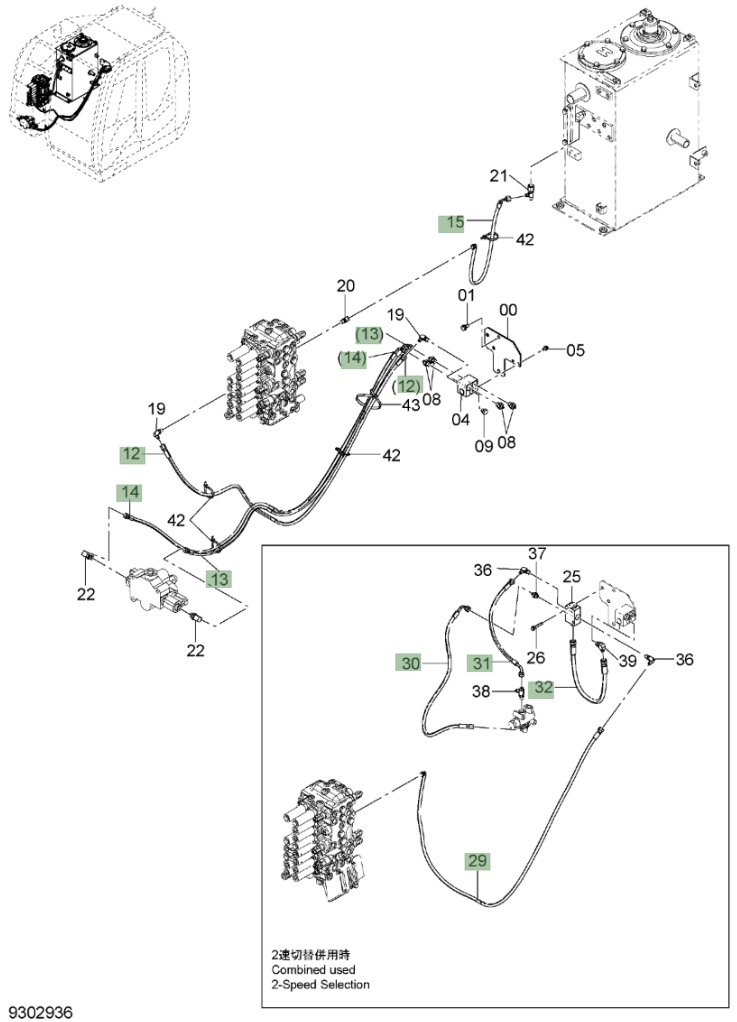

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 9303371 before removing the hose.

Hitachi ZX75US-3 installation diagram showing hydraulic hose 9303371 at Pipe No. 15 — Hitachi ZX75US-3Part 9303371 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 9303371
Diagram pipe number: 15
Installation route: 分配阀后右~液压油箱
Hose specification: DN6;1SN-4;7Mpa
Finished length: 850 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
