Individual hose record
4408485 Hose Repair Specifications
Excavator · Hitachi · EX330LC-5 · Attachments – Lock Valve
Finished length1,550 mm
Locate this hose

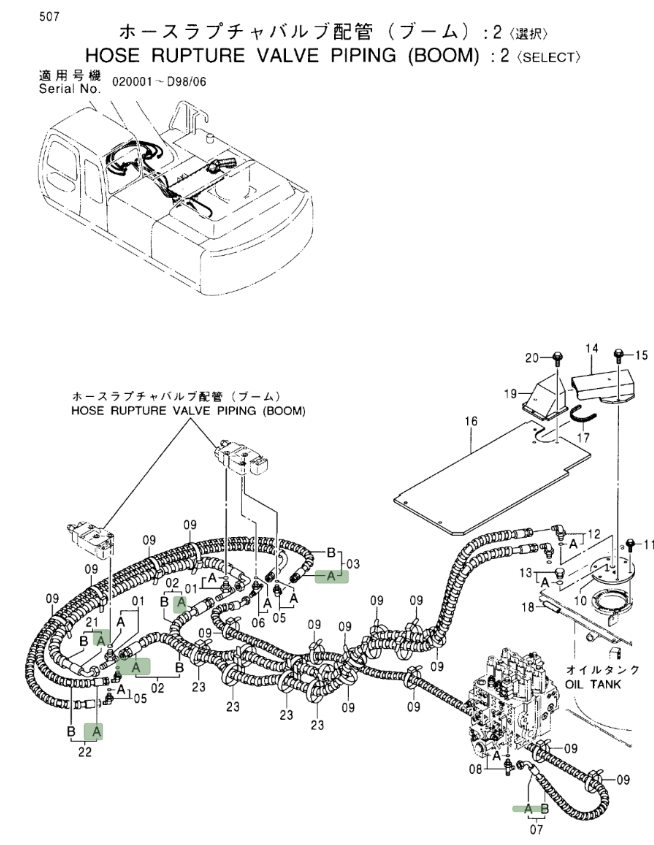

Installation diagram — Pipe No. 22A
Locate Pipe No. 22A in the diagram, then confirm part number 4408485 before removing the hose.
Repair specifications
- Part number
- 4408485
- Diagram pipe number
- 22A
- Installation route
- Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,550 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
