Individual hose record
4462256 Hose Repair Specifications
Excavator · Hitachi · ZX450LC · Attachments – Breaker
Finished length3,050 mm
Locate this hose

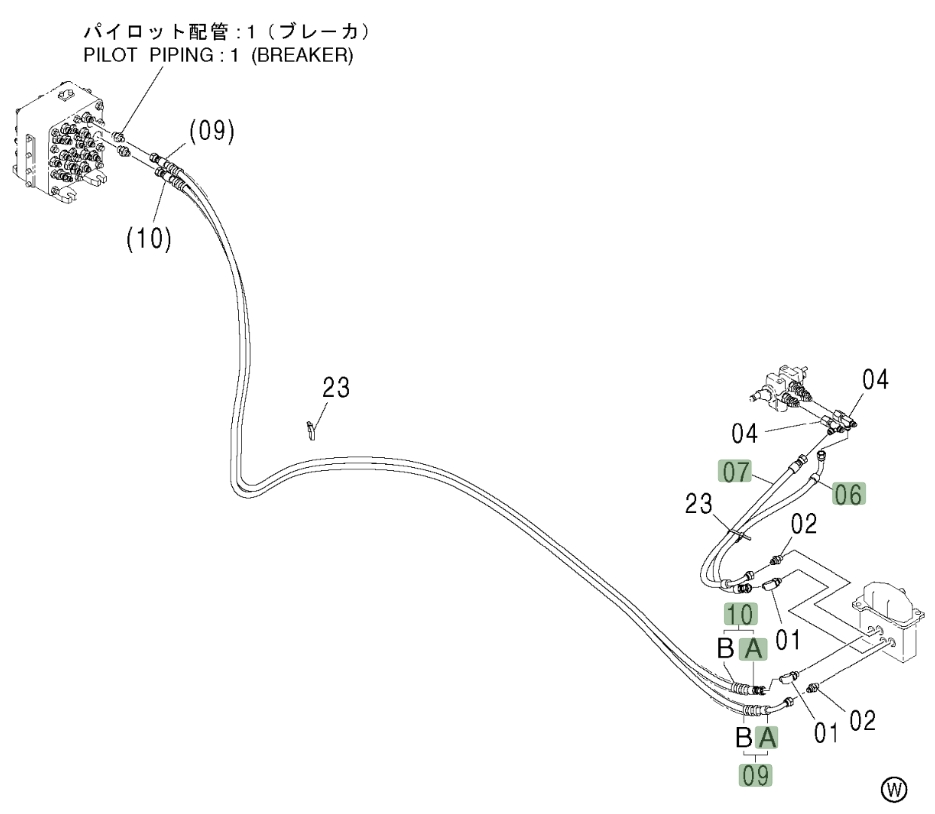

Installation diagram — Pipe No. 10A
Locate Pipe No. 10A in the diagram, then confirm part number 4462256 before removing the hose.
Repair specifications
- Part number
- 4462256
- Diagram pipe number
- 10A
- Installation route
- 破碎器踏板~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,050 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
