4331508 Hose Repair Specifications

Excavator · Hitachi · ZX450LC · Attachments – Breaker

Finished length550 mm

Locate this hose

Installation diagram — Pipe No. 6

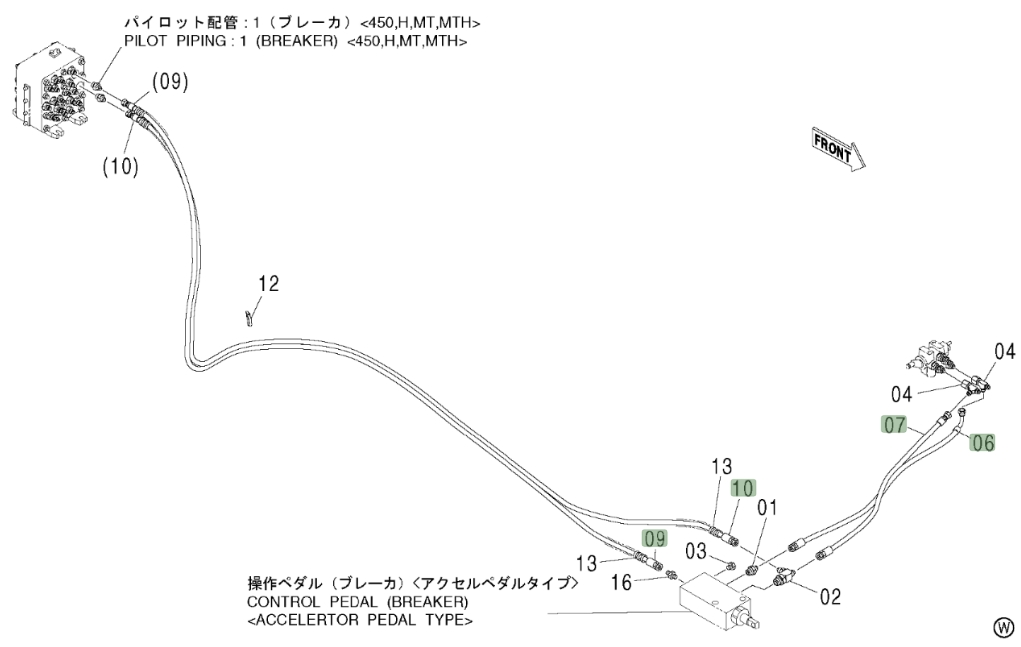

Locate Pipe No. 6 in the diagram, then confirm part number 4331508 before removing the hose.

Hitachi ZX450LC installation diagram showing hydraulic hose 4331508 at Pipe No. 6 — Hitachi ZX450LCPart 4331508 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 4331508
Diagram pipe number: 6
Installation route: 破碎器踏板~进回油阀
Hose specification: DN10;1SN-6;7Mpa
Finished length: 550 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
